> MM-D-60 - Neodymium Rare Earth Female Stud Pot/Cup Mounting Magnet

60 x 15 mm Neodymium Rare Earth Female Stud Pot/Cup Mounting Magnet N38 PN: MM-D-60

60 x 15 mm Neodymium Rare Earth Female Stud Pot/Cup Mounting Magnet N38

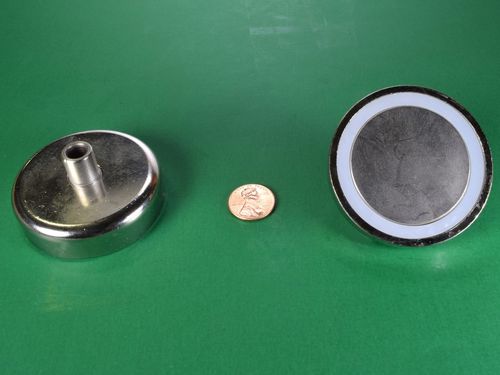

60 x 15 mm Neodymium Rare Earth Female Stud Pot/Cup Mounting Magnet N38 --thumbnail-1

60 x 15 mm Neodymium Rare Earth Female Stud Pot/Cup Mounting Magnet N38 --thumbnail-2

$41.93

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$41.93	1
$40.99	2	2%
$40.07	3-4	4%
$39.13	5-6	7%
$38.20	7-9	9%
$37.27	10-24	11%
$36.34	25-49	13%
$35.40	50-99	16%
$34.48	100-249	18%
$33.54	250-499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

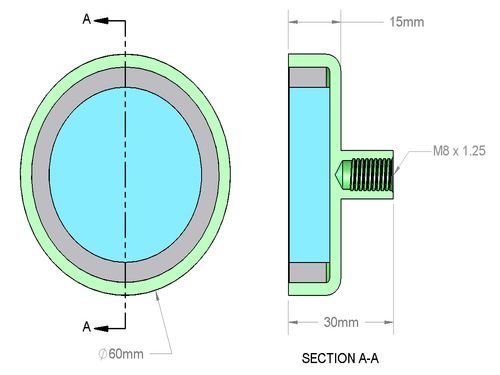

Dimensions:
    D=60mm (2.36")
    d=8mm (0.32") (M8 Coarse Female threaded stud)
    H=30mm (1.18")
    h=15mm (0.59")
    M=12mm (0.47")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 9.30 oz. (264 g)
Pull Force: 249.1 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

The MM-D style is a flat mounting magnet with a female threaded shaft permanently attached. If you need a magnet to attach to something threaded, this is what you need.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
