- Dimensions: 2" x 1" x 1/8" thick
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Thru Thickness
- Weight: 1.08 oz. (30.73 g)
- Pull Force, Case 1: 21.76 lbs
- Pull Force, Case 2: 132.3 lbs
- Surface Field: 1152 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

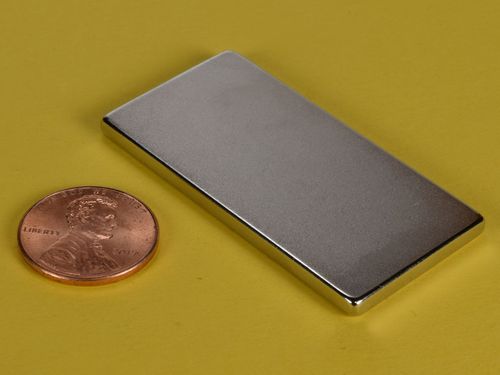

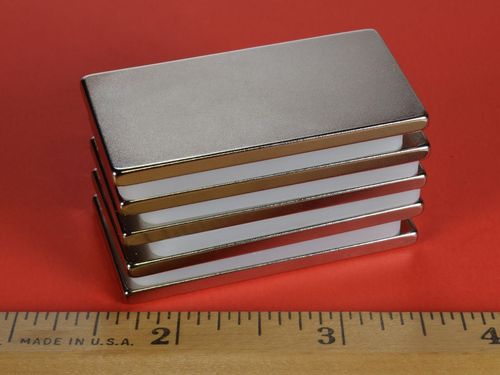

Large and powerful blocks in the ever-popular 1/8" thickness.
This
size is also available in High Temp grade N42SH as part number
BY0X02SH and in grade
N52 as part number
BY0X02-N52.
|
