1 x 1 x 1/2 Inch Neodymium Rare Earth Counterbored Block Magnet N42 (#10 screw) PN: BX0X08DCB

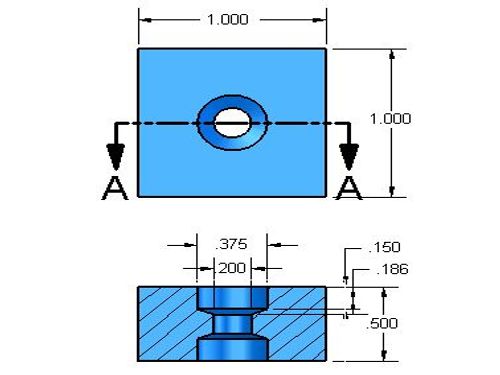

• Dimensions: 1" x 1" x 1/2" thick w/ hole to accept a #10 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 1.98 oz. (56.13 g)
• Pull Force, Case 1: 48.45 lbs
• Pull Force, Case 2: 66.25 lbs
• Surface Field: 3916 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

It's a block! It's a ring! It's the BX0X08DCB! These hefty blocks are double-counterbored for use with a #10 screw. The BX0X08DCB is counterbored on both sides, so it is reversible. A unique block that can be used for a wide range of applications where a strong attractive or replusive force is required. Great for easily attaching a very powerful magnet to a surface that it would not normally stick to.

Also available in this size: BX0X08-N52 (Grade N52, no hole), BX0X08 (Grade N42, no hole), BX0X08DCSPC-BLK (Grade N42, Double Countersunk, Black plastic coated)


	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
