BX028 - Neodymium Rare Earth Bar Magnet - 1" Len x 1/8" Wid x 1/2" Thi

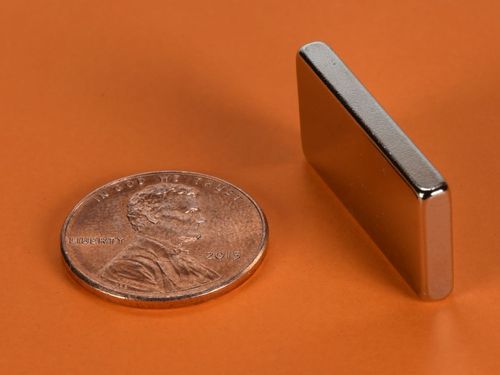

bx028-neodymium-rare-earth-bar-magnet--thumbnail-1

bx028-neodymium-rare-earth-bar-magnet--thumbnail-2

$2.76

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.76	1-4
$2.70	5-9	2%
$2.64	10-24	4%
$2.58	25-49	7%
$2.52	50-99	9%
$2.45	100-249	11%
$2.39	250-499	13%
$2.33	500-999	16%
$2.27	1000-2499	18%
$2.21	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1" x 1/8" x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.271 oz. (7.68 g)
Pull Force, Case 1: 9.67 lbs
Pull Force, Case 2: 10.50 lbs
Surface Field: 6231 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

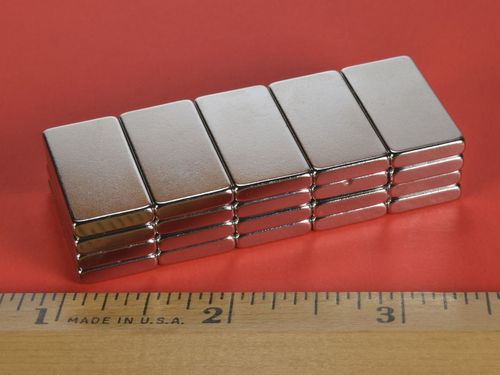

These small blocks are an interesting size. They are what is sometimes referred to as a "tall block" because of the magnetization through the thickness, 1/2" in this case. This causes them to "stack" less like pancakes and more like a sidewalk. Great for magnetic boards due to their ability to be grabbed easily.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
