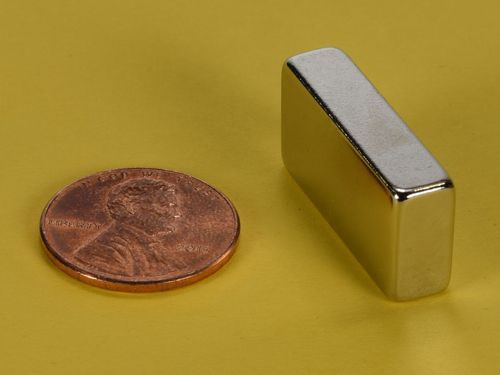

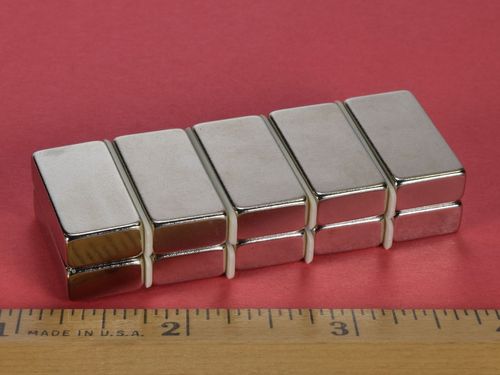

1 x 1/4 x 1/2 Inch Neodymium Rare Earth Bar Magnet N42 PN: BX048

• Dimensions: 1" x 1/4" x 1/2" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.542 oz. (15.37 g)
• Pull Force, Case 1: 18.71 lbs
• Pull Force, Case 2: 21.64 lbs
• Surface Field: 4876 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These long blocks are an interesting magnet. The poles are located on two of the opposite rectangular surfaces and not on the smaller ends as you may expect. The BX048 are quite unique and can be used in some unusual ways.
