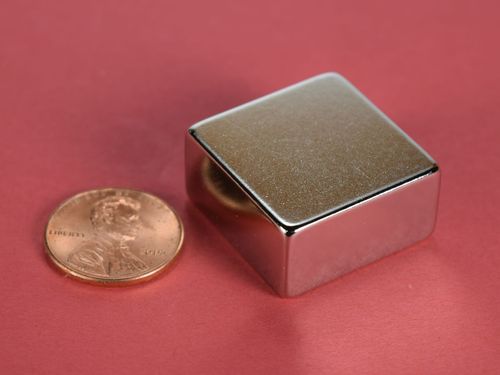

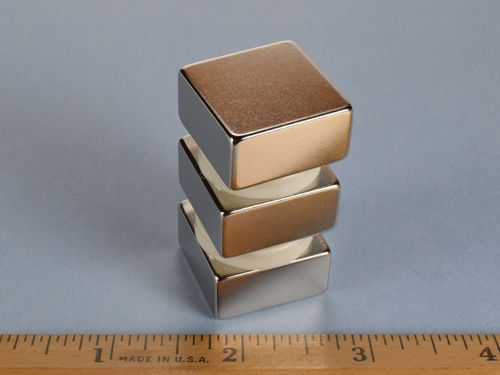

1 x 1 x 1/2 Inch Neodymium Rare Earth Block Magnet N42 PN: BX0X08

• Dimensions: 1" x 1" x 1/2" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 2.17 oz. (61.46 g)
• Pull Force, Case 1: 54.44 lbs
• Pull Force, Case 2: 74.44 lbs
• Surface Field: 4400 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Each of these powerful block magnets has a pull force of over 50 lbs! They are very strong and must be handled carefully to avoid personal injury and damage to the magnets.

Also available in this size: BX0X08-N52 (Grade N52), BX0X08DCB (Grade N42, Double Counterbored), BX0X08DCSPC-BLK (Grade N42, Double Countersunk, Black plastic coated)

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
