> BX048CS - Neodymium Rare Earth Countersunk Block Magnet

1 x 1/4 x 1/2 Inch Neodymium Rare Earth Countersunk Block Magnet N42 (#6 screw) PN: BX048CS

1 x 1/4 x 1/2 Inch Neodymium Rare Earth Countersunk Block Magnet N42 (#6 screw)--thumbnail-1

1 x 1/4 x 1/2 Inch Neodymium Rare Earth Countersunk Block Magnet N42 (#6 screw)--thumbnail-2

$4.73

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$4.73	1-4
$4.62	5-9	2%
$4.51	10-24	5%
$4.42	25-49	7%
$4.31	50-99	9%
$4.20	100-249	11%
$4.09	250-499	14%
$4.00	500-999	15%
$3.89	1000-2499	18%
$3.78	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1" x 1/4" x 1/2" thick w/ 2x holes to accept #6 screws
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.48 oz. (13.6 g)
Pull Force, Case 1: 17.17 lbs
Pull Force, Case 2: 21.58 lbs
Surface Field: 5521 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The BX048CS is magnetized through the 1/2" direction. In other words, the north and south poles are located on the long, 1" x 1/4" faces.

Unlike most of our Countersunk Magnets, the holes are not parallel to the magnetization direction. The hole is, "through the side." The north and south poles of this magnet are not on the faces with the holes.

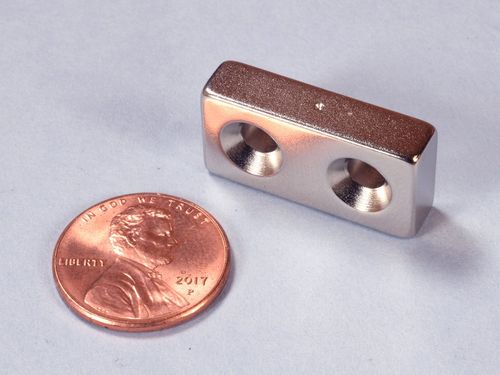

These magnets have either a dimple or dot on the north pole.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.

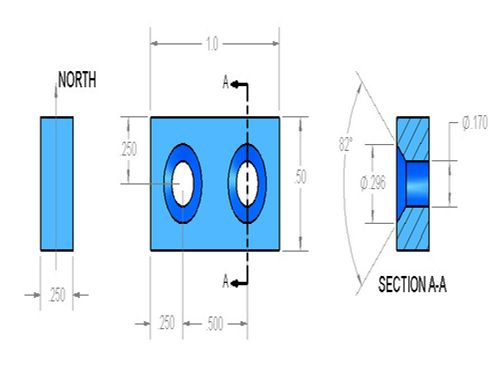

	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
