3/4 x 1/2 x 1/8 Inch Neodymium Rare Earth Countersunk Block Magnet N42 (1 Pair) PN: BC82CS-P

• Dimensions: 3/4" x 1/2" x 1/8" thick with countersunk hole for #6 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.184 oz. (5.23 g)
• Pull Force, Case 1: 7.36 lbs
• Pull Force, Case 2: 25.61 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

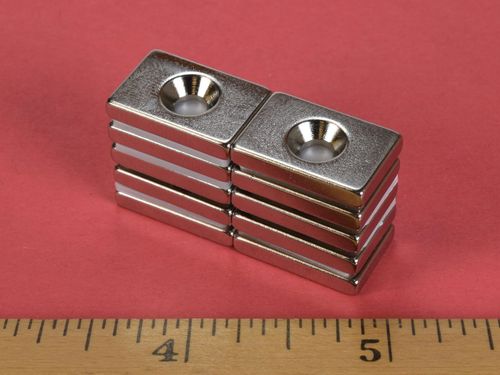

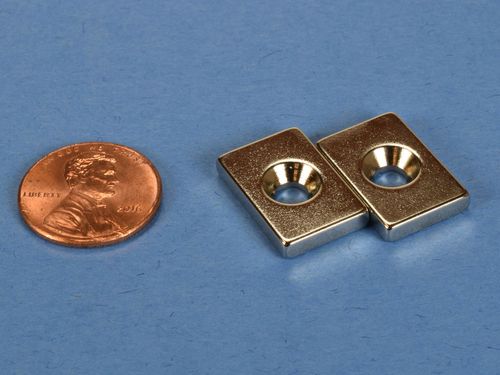

Here we offer a 3/4" x 1/2" in 1/8" thick, rectangular block magnet with a hole for a #6 flathead screw to allow for easy fastening. Sold by the pair as our part number BC82CS-P.  One will have the north pole on the countersink side and one will have the south pole on the countersink side, so they will attract each other when they are screwed in place.

These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers.
