> B884-N52 - Neodymium Rare Earth Block Magnet

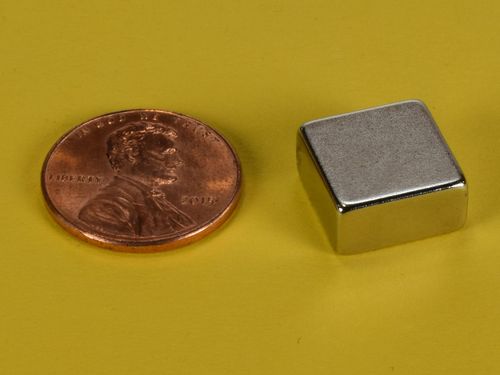

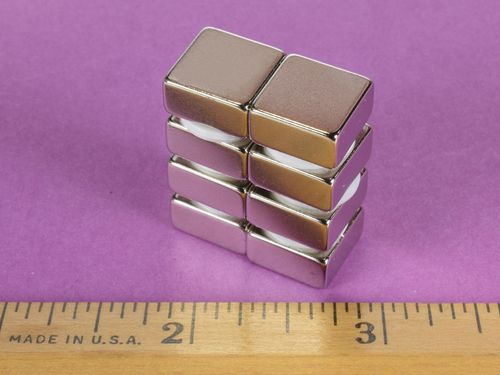

1/2 x 1/2 x 1/4 Inch Neodymium Rare Earth Block Magnet N52 PN: B884-N52

b884-n52-neodymium-rare-earth-block-magnet

b884-n52-neodymium-rare-earth-block-magnet--thumbnail-1

b884-n52-neodymium-rare-earth-block-magnet--thumbnail-2

$3.24

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$3.24	1-4
$3.17	5-9	2%
$3.10	10-24	4%
$3.02	25-49	7%
$2.95	50-99	9%
$2.88	100-249	11%
$2.81	250-499	13%
$2.74	500-999	15%
$2.66	1000-2499	18%
$2.59	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1/2" x 1/2" x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.271 oz. (7.68 g)
Pull Force, Case 1: 16.28 lbs
Pull Force, Case 2: 26.54 lbs
Surface Field: 4933 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

These are very strong squares. They are sized just like the B884, but in grade N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
