> B888PC-PUR - Neodymium Plastic Coated Block Magnet

B888PC-PUR - Neodymium Plastic Coated Block Magnet - 1/2" Len x 1/2" Wid x 1/2" Thi

b888pc-pur-neodymium-plastic-coated-block-magnet--thumbnail-1

b888pc-pur-neodymium-plastic-coated-block-magnet--thumbnail-2

$4.64

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$4.64	1-4
$4.54	5-9	2%
$4.44	10-24	4%
$4.33	25-49	7%
$4.24	50-99	9%
$4.13	100-249	11%
$4.03	250-499	13%
$3.92	500-999	16%
$3.83	1000-2499	17%
$3.72	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads
Video

Dimensions: 1/2" x 1/2" x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Purple Plastic
Magnetization Direction: Thru Thickness
Weight: 0.412 oz. (11.69 g)
Pull Force, Case 1: 7.01 lbs
Pull Force, Case 2: 8.89 lbs
Surface Field: 5754 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

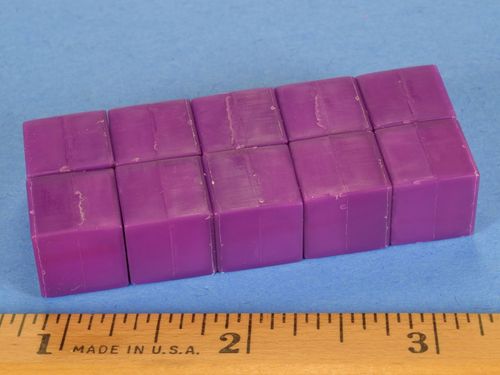

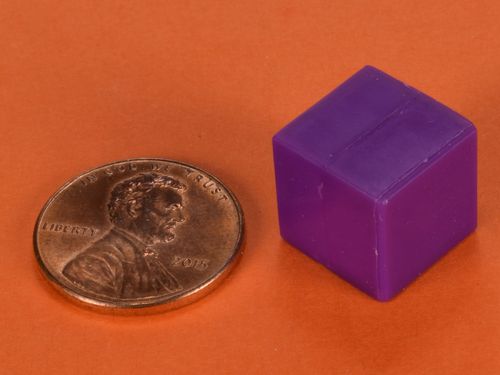

These cubes are coated with a durable layer of plastic. They won't mark or scratch surfaces they come in contact with. They are also completely weatherproof.

The B888PC blocks are a great option for heavy holding on magnetic bulletin boards, and are perfect for heavy holding outdoors. They are great magnets for demonstrating magnetism as they can be slammed together many times without damage. Please note: Slight color variation may occur from order to order.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
