> B999 - Neodymium Rare Earth Cube Magnet

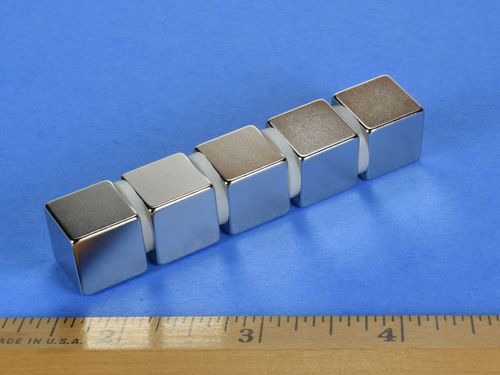

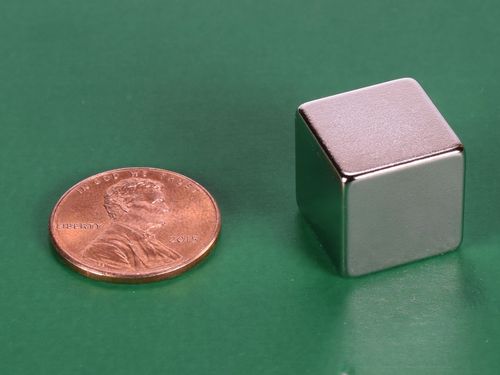

9/16 x 9/16 x 9/16 Inch Neodymium Rare Earth Cube Magnet N42 PN: B999

b999-neodymium-rare-earth-cube-magnet--thumbnail-1

b999-neodymium-rare-earth-cube-magnet--thumbnail-2

$6.32

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$6.32	1-4
$6.18	5-9	2%
$6.04	10-24	4%
$5.90	25-49	7%
$5.76	50-99	9%
$5.62	100-249	11%
$5.47	250-499	13%
$5.34	500-999	16%
$5.20	1000-2499	18%
$5.05	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 9/16" x 9/16" x 9/16" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.772 oz. (21.88 g)
Pull Force, Case 1: 23.66 lbs
Pull Force, Case 2: 27.39 lbs
Surface Field: 5754 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Very strong cubes. These things can hold a lot of weight. They are too big to be considered toys, so please use caution when handling. Two of these magnets or one magnet and anything metal could pinch you if you aren't careful. Very strong!! The cube shape makes them excellent for holding metal pieces for any metal working project.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
