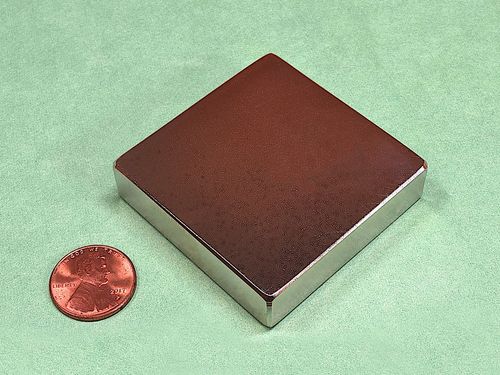

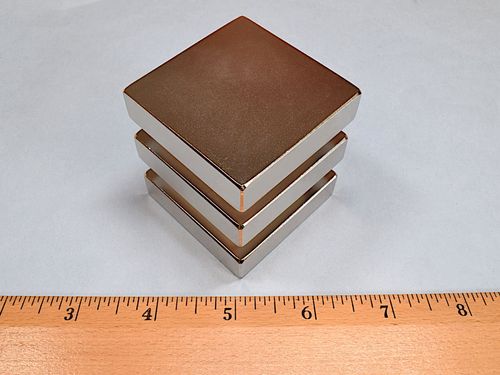

2 x 2 x 1/2 Inch Neodymium Rare Earth Surplus Block Magnet N35 PN: ZBY0Y08

• Dimensions: 2" x 2" x 1/2" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N35
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 8.67 oz. (245.8 g)
• Pull Force, Case 1: 96.90 lbs
• Pull Force, Case 2: 206.6 lbs
• Surface Field: 2478 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 12,100 Gauss
• BHmax: 35 MGOe

These might be surplus magnets, but they are still incredibly strong and dangerous if mishandled. One of these blocks has a pull force of nearly 100 lbs when stuck to a large, thick steel plate!

This size is also available in grade N42, part number BY0Y08, and N52 as part number BY0Y08-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.
