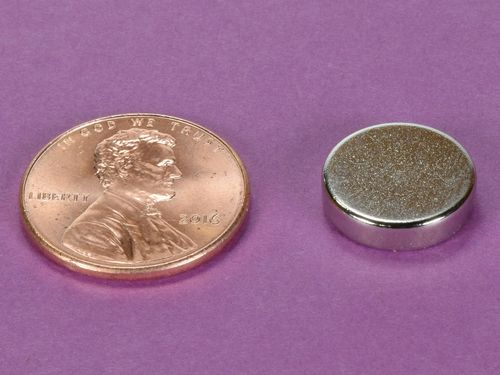

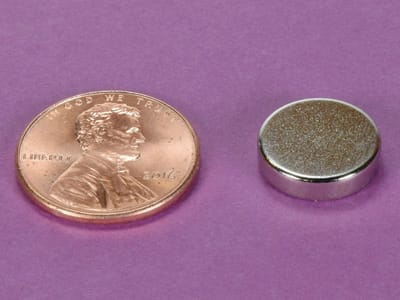

1/2 x 1/8 Inch Neodymium Rare Earth High Temp Disc Magnet N42SH PN: D82SH

• Dimensions: 1/2" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42SH
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.106 oz. (3.02 g)
• Pull Force, Case 1: 6.44 lbs
• Pull Force, Case 2: 16.00 lbs
• Surface Field: 2952 Gauss
• Max Operating Temp: 302ºF (150ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

If you are looking for a powerful disc magnet to put in your oil pan or attach to an oil filter, this is the magnet you need. Our D82SH magnets are made with grade N42SH (SH = Super High Temperature) material. The SH material means that the magnets can be heated to 300° F without any permanent loss of magnetic strength, unlike standard neodymium magnets that begin to lose strength at 175° F. Suitable for many high temperature applications.


This size is also available in grade N42 as part number D82, in grade N52 with Black Nickel finish as part number D82B-N52, in grade N42 with a Black Epoxy coating as part number D82E, diametrically magnetized as part number D82DIA, and in grade N52 as part number D82-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
