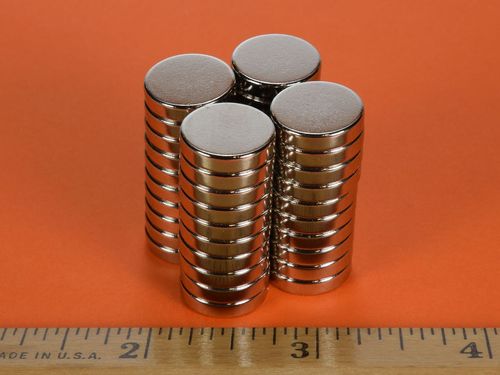

9/16 x 1/8 Inch Neodymium Rare Earth Disc Magnet N42 PN: D92

• Dimensions: 9/16" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.135 oz. (3.82 g)
• Pull Force, Case 1: 7.32 lbs
• Pull Force, Case 2: 21.10 lbs
• Surface Field: 2681 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

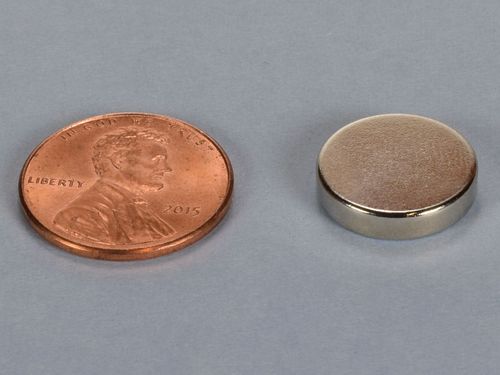

Smaller than a dime in diameter and just over twice the thickness, the D92 is a great size for a wide range of applications. Compact and powerful!

This size is also available in grade N52 as part number D92-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.
