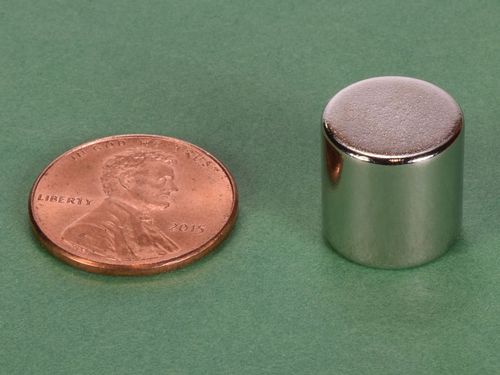

1/2 x 1/2 Inch Neodymium Rare Earth Cylinder/Rod Magnet N42 PN: D88

• Dimensions: 1/2" dia. x 1/2" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.426 oz. (12.1 g)
• Pull Force, Case 1: 14.60 lbs
• Pull Force, Case 2: 16.40 lbs
• Surface Field: 5903 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

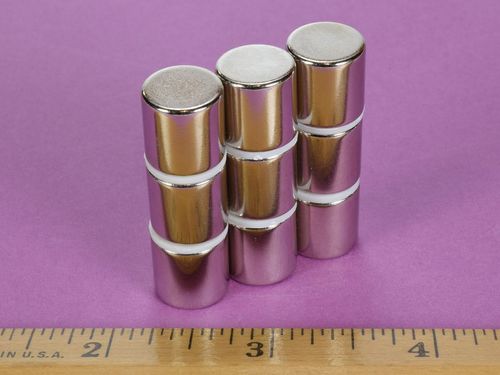

Our D88 cylinders are very powerful. They will definitely pinch if they are not handled carefully. They will chip if allowed to slam together because the magnets attract each other with such force. A great size for heavy holding.

This size is also available in grade N52 as part number D88-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
