• Dimensions: 1/4" dia. x 1" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Diametrical (Poles on Curved Sides)
• Weight: 0.213 oz. (6.03 g)
• Pull Force, Case 1: 9.38 lbs
• Pull Force, Case 2: 14.77 lbs
• Surface Field: 6698 Gauss
• Max Operating Temp: 176º F (80º C)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

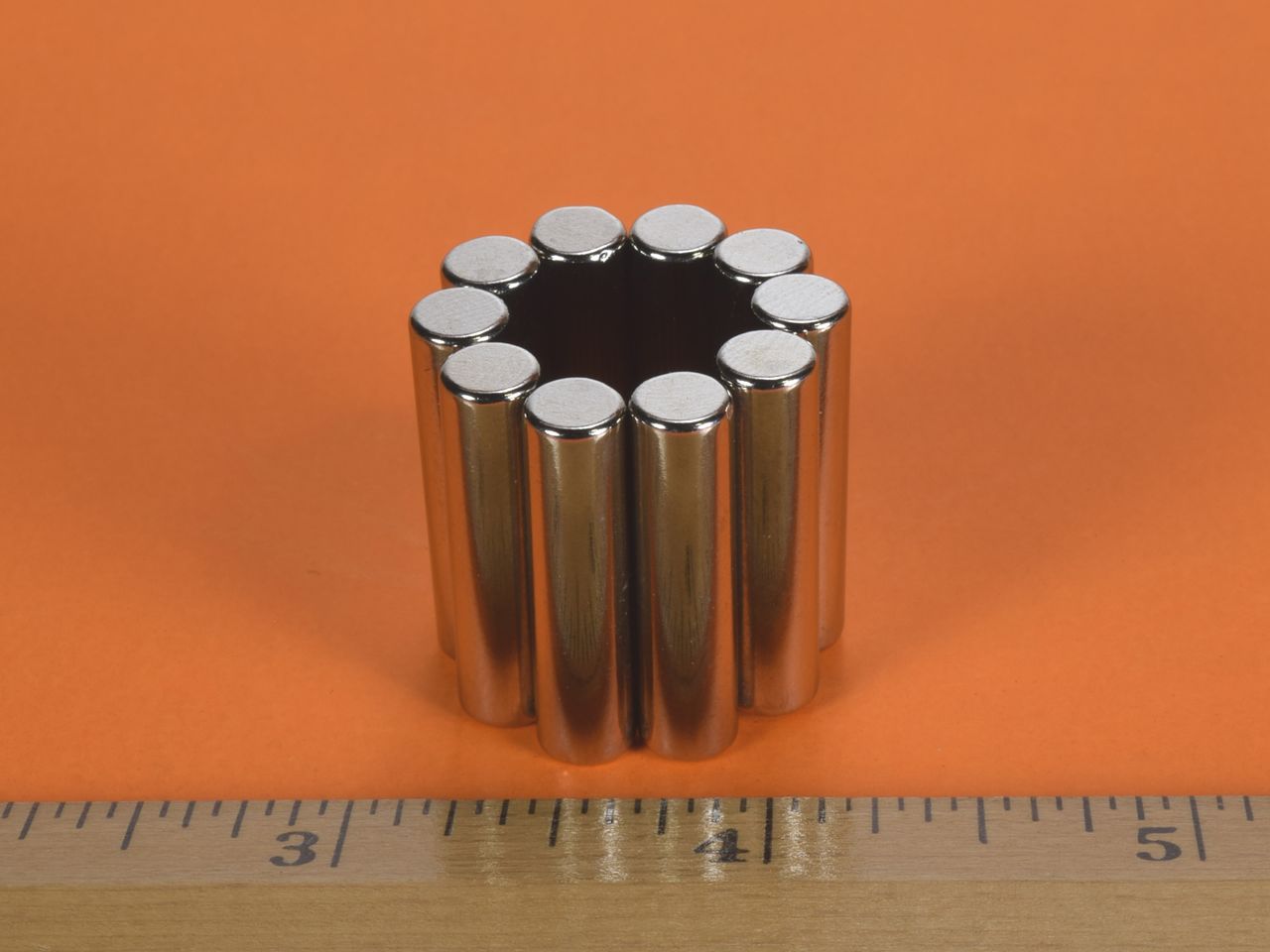

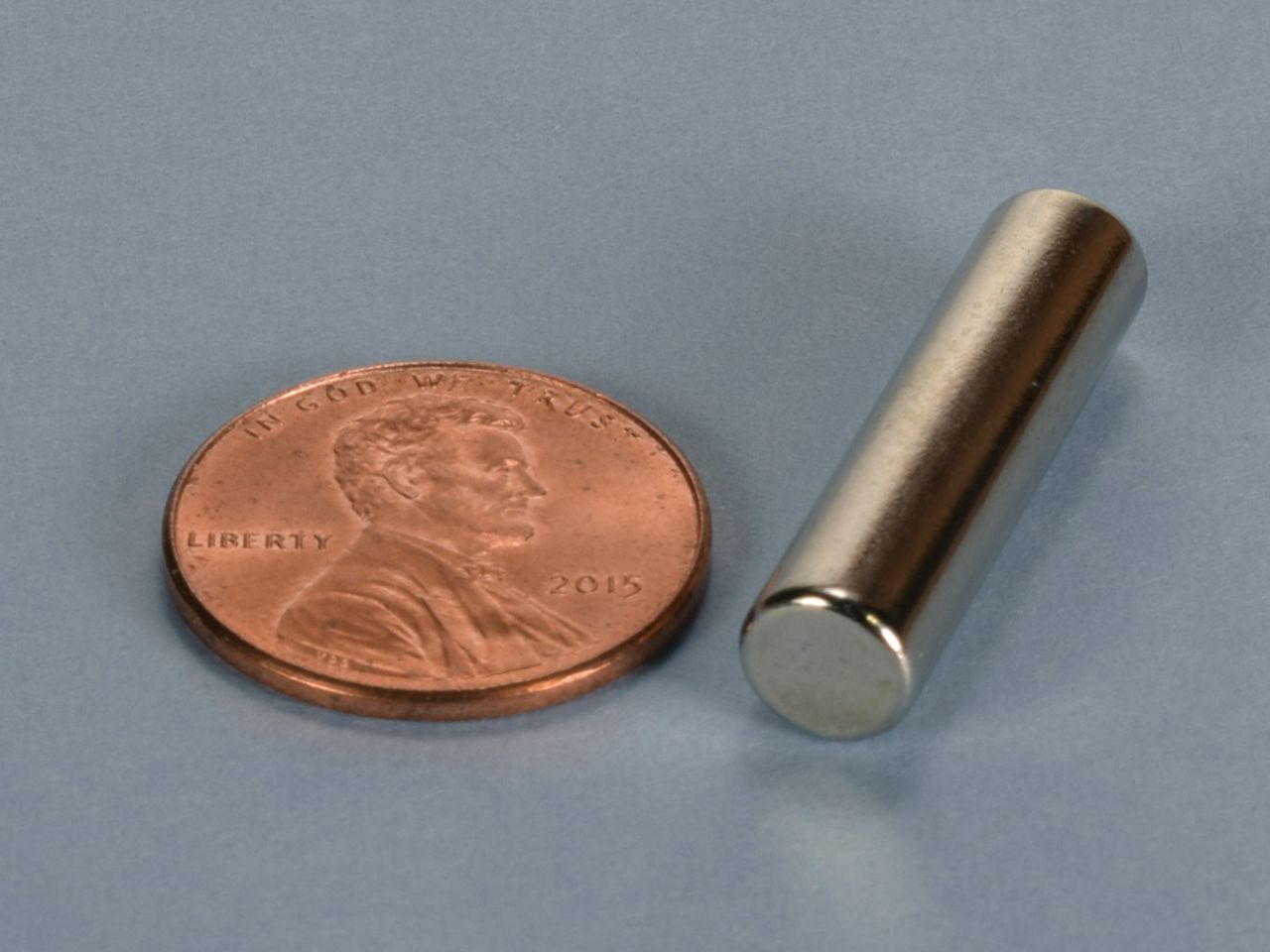

The 1/4" by 1" cylinder is one of our most popular sizes due to its great versatility. The D4X0DIA is a little different in that it is diametrically magnetized, which means the curved sides will attract instead of the flat ends.

This size is also available axially magnetized as part number D4X0 and with a small dimple on the north end as part number D4X0-ND.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
