D801-N52

Description
Technical
Downloads

Dimensions: 1/2" dia. x 1/32" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0266 oz. (0.754 g)
Pull Force, Case 1: 1.42 lbs
Pull Force, Case 2: 16.10 lbs
Surface Field: 918 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

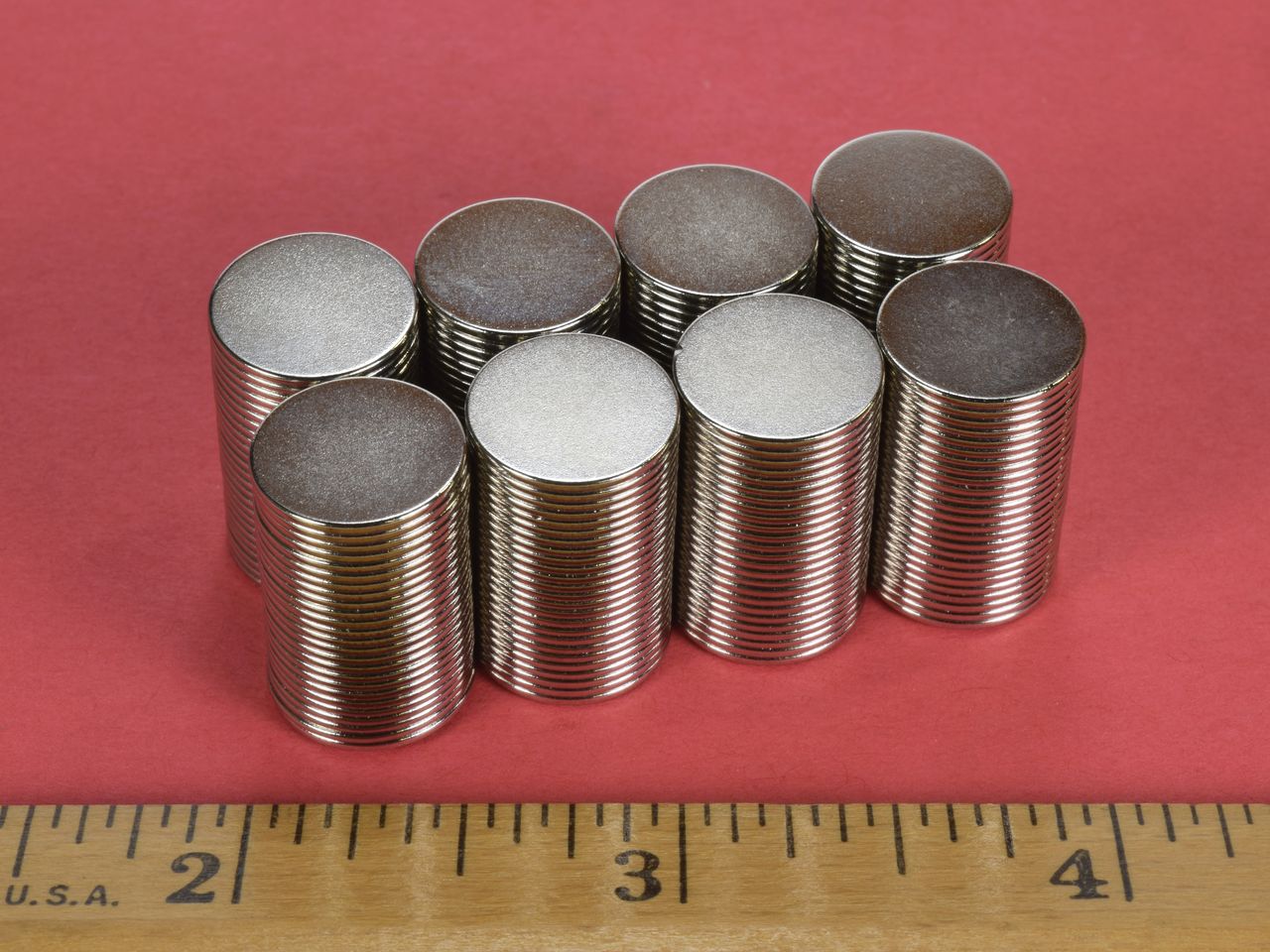

The D801-N52 is an ultra-thin, 1/2" diameter neodymium disc magnet. Perfect for applications that call for a low profile magnet with fantastic strength. These discs are unbelievably powerful for their size.

This size is also available in grade N42 as part number D801.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $0.54

Quantity:

Qty:

Price ea.	Qty
$0.54	1-49
$0.53	50-99
$0.52	100-249
$0.50	250-499
$0.49	500-999
$0.48	1000-2499
$0.47	2500-4999
$0.45	5000-9999
$0.44	10000-24999
$0.43	25000-49999
For pricing at higher order quantities, please email us!
