DC1-N52 - Neodymium Disc Magnet

• Dimensions: 3/4" dia. x 1/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.120 oz. (3.39 g)
• Pull Force, Case 1: 6.13 lbs
• Pull Force, Case 2: 42.10 lbs
• Surface Field: 1217 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

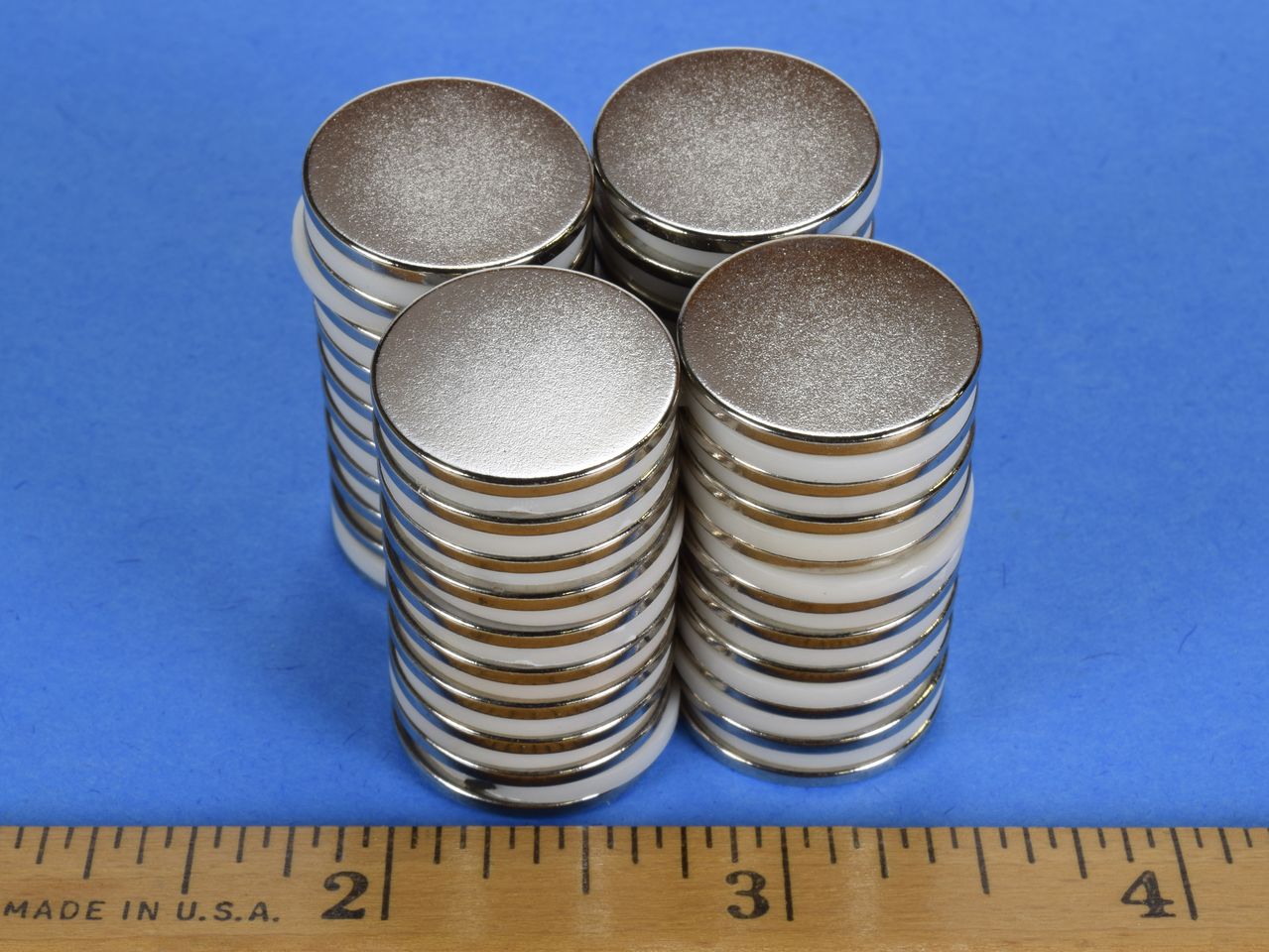

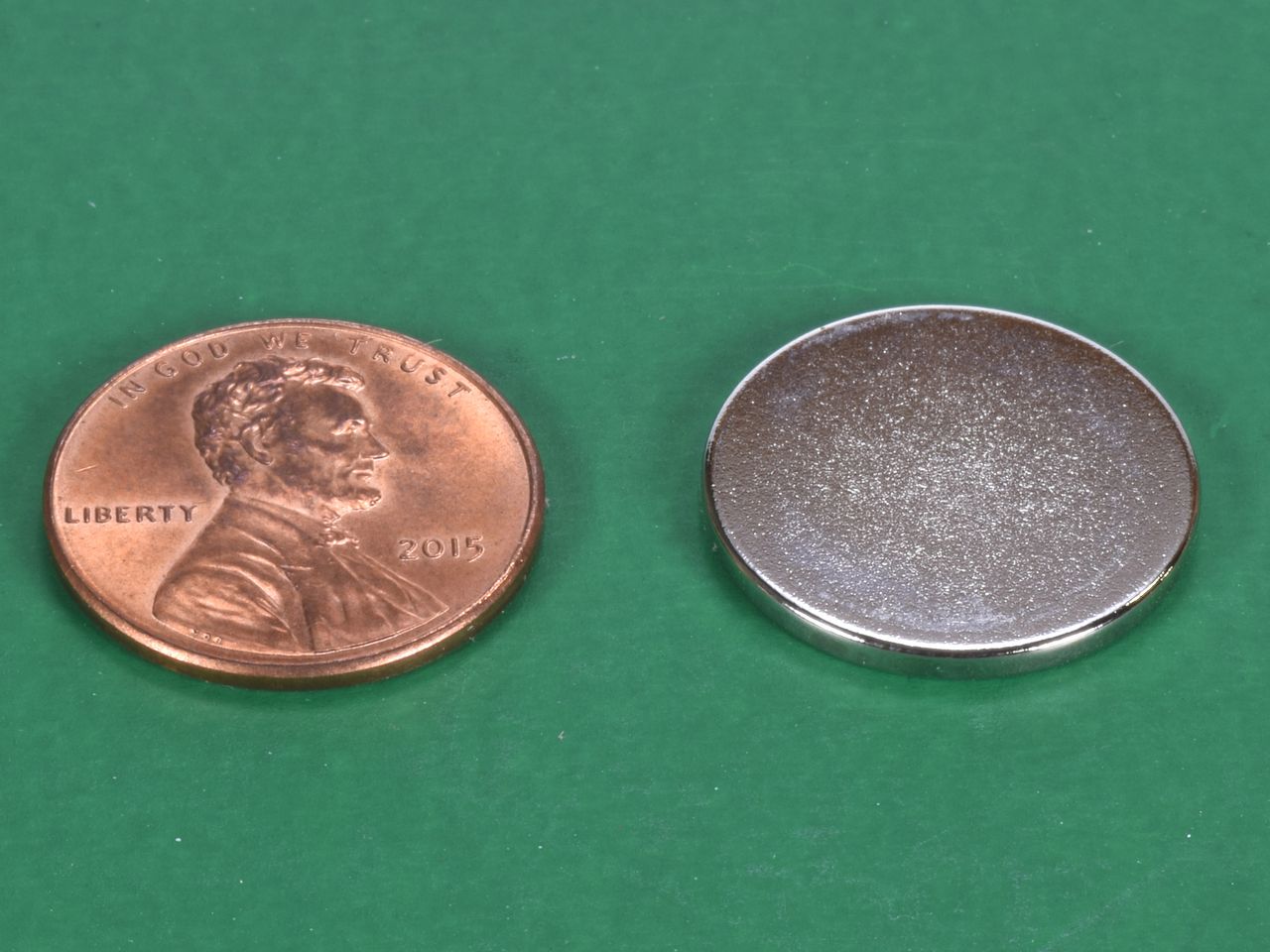

The DC1-N52 is about the size of a penny. A very strong, silver, magnetic penny. Very thin and incredibly powerful for their size. They are shown on the left stacked together with protective spacers between them so they can be pulled apart easily. They are that strong.

This size is also available in grade N42 as part number DC1.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.
