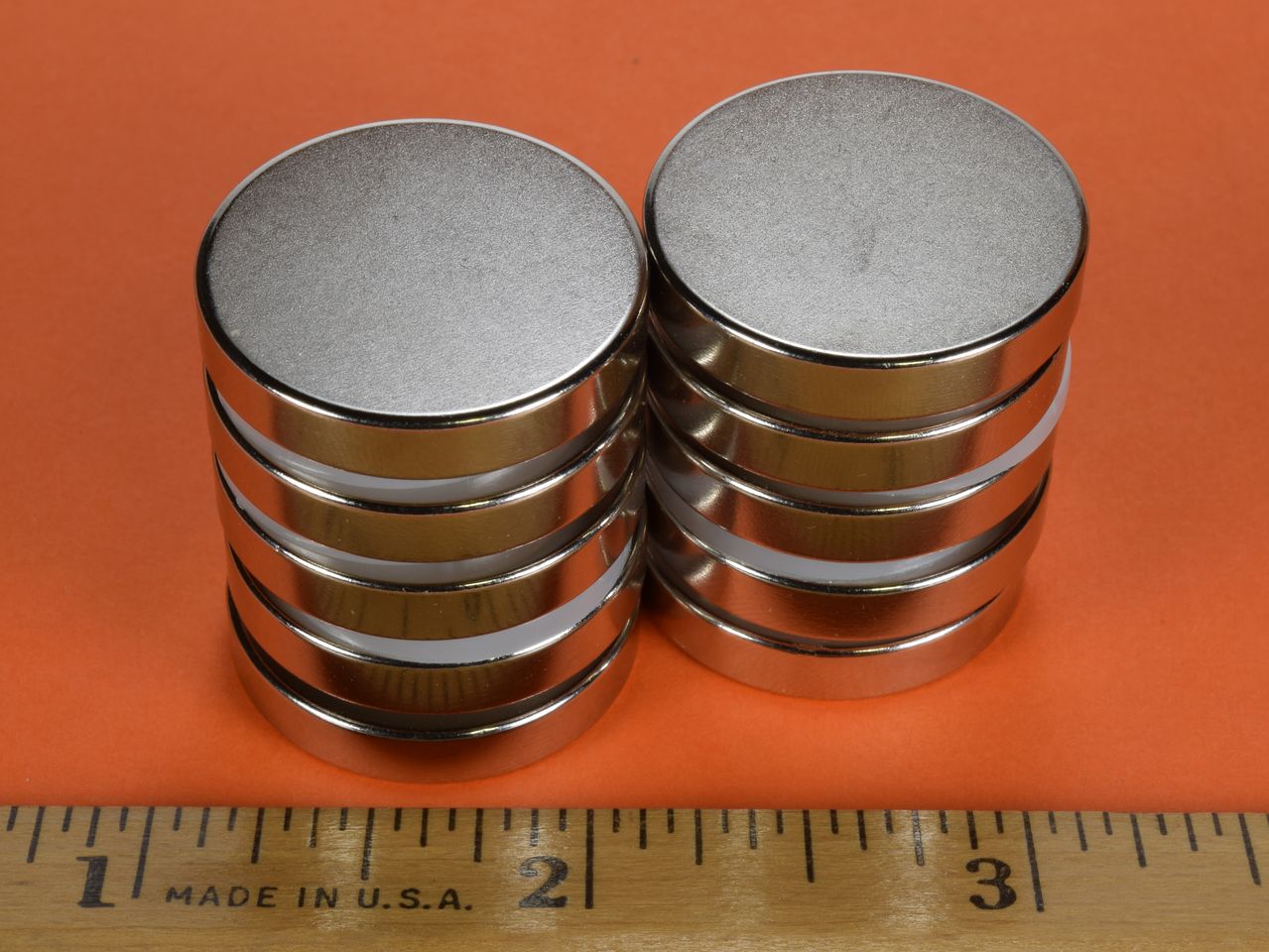

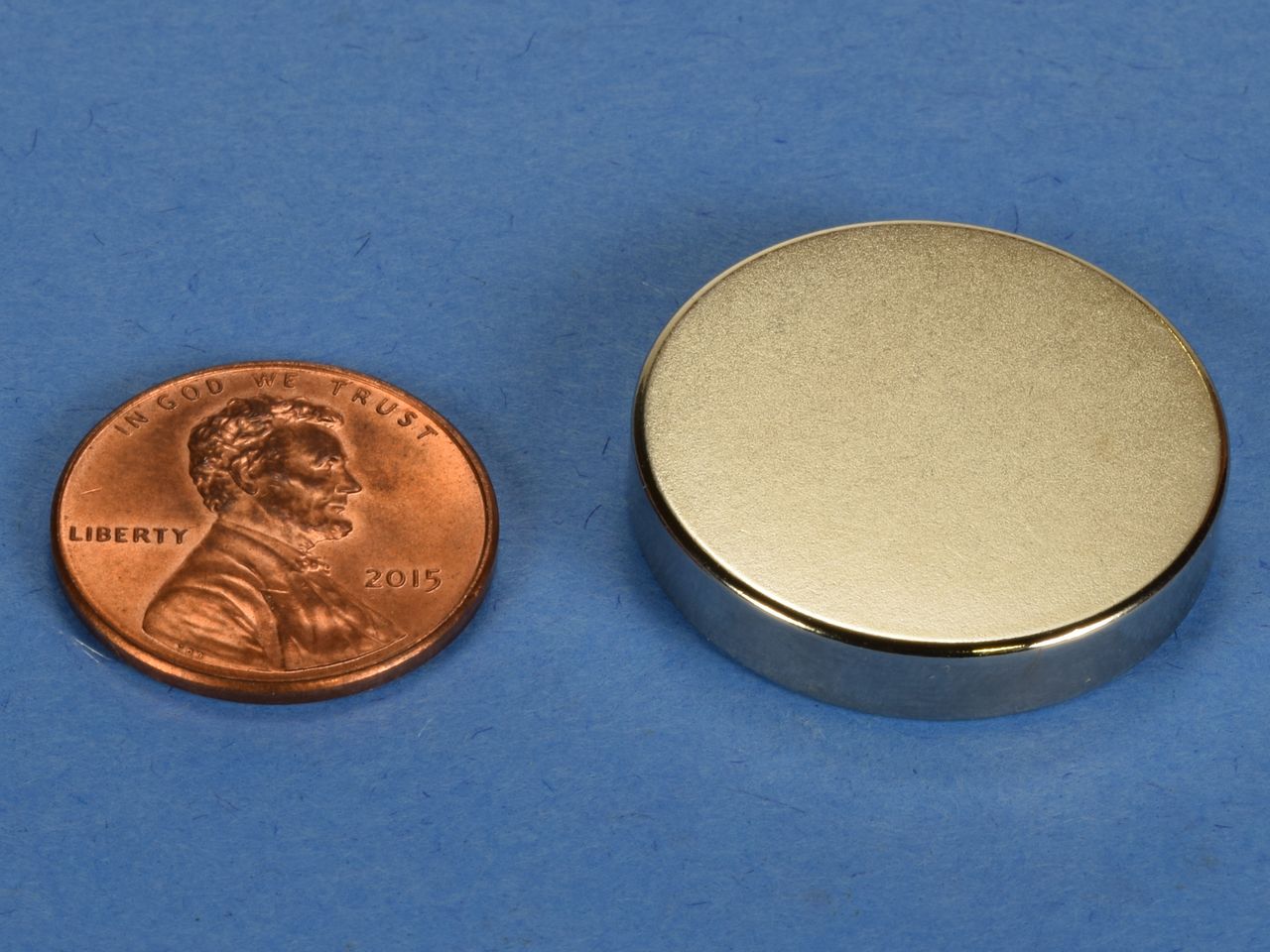

- Dimensions: 1" dia. x 3/16" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N52
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.639 oz. (18.1 g)
- Pull Force, Case 1: 27.80 lbs
- Pull Force, Case 2: 71.81 lbs
- Surface Field: 2598 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 14,800 Gauss
- BHmax: 52 MGOe
This size is also available in grade N42 as part number DX03.
 | Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
 | Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
 | Pull Force, Case 3 vs. distance: Magnet to Magnet. |
 | Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
 | Click here for a depiction of the magnetic field. |
 | View B-H curves for this magnet. |
 | Click here to download a PDF Specification Sheet. |
 | Click here to download a PDF drawing of this product. |
 | Click here to download a Certificate of Compliance for this product. |
 | Click here to download a RoHS Statement of Compliance for this product. |
 | Click here to download a Material Safety Data Sheet (MSDS) for this product. |
 | Click here to download a Conflict Minerals Reporting Template (CMRT). |
 | Click here to download a Certificate of Origin for this product. |
 | Click here for a REACH compliance statement. |
 | Click here to download a .STEP file (3D model). |
 | Click here to download an .IGS file (3D model). |
