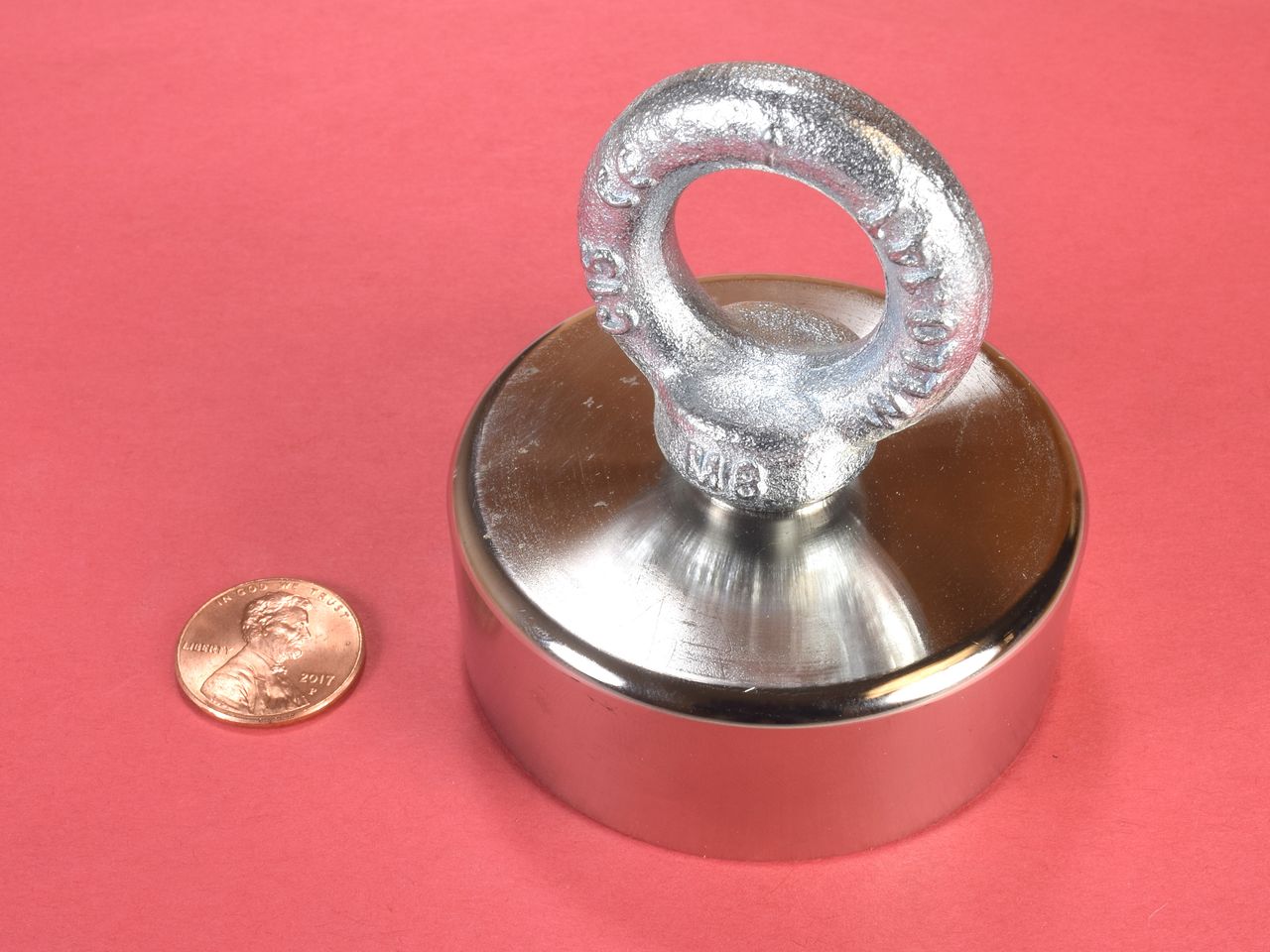

FM1-60

Description
Downloads

Dimensions:
D=60mm (2.36")
H=63mm (2.48")
M=8mm (0.32") (M8 Coarse threaded hook)
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 19.22 oz
Pull Force: 400 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

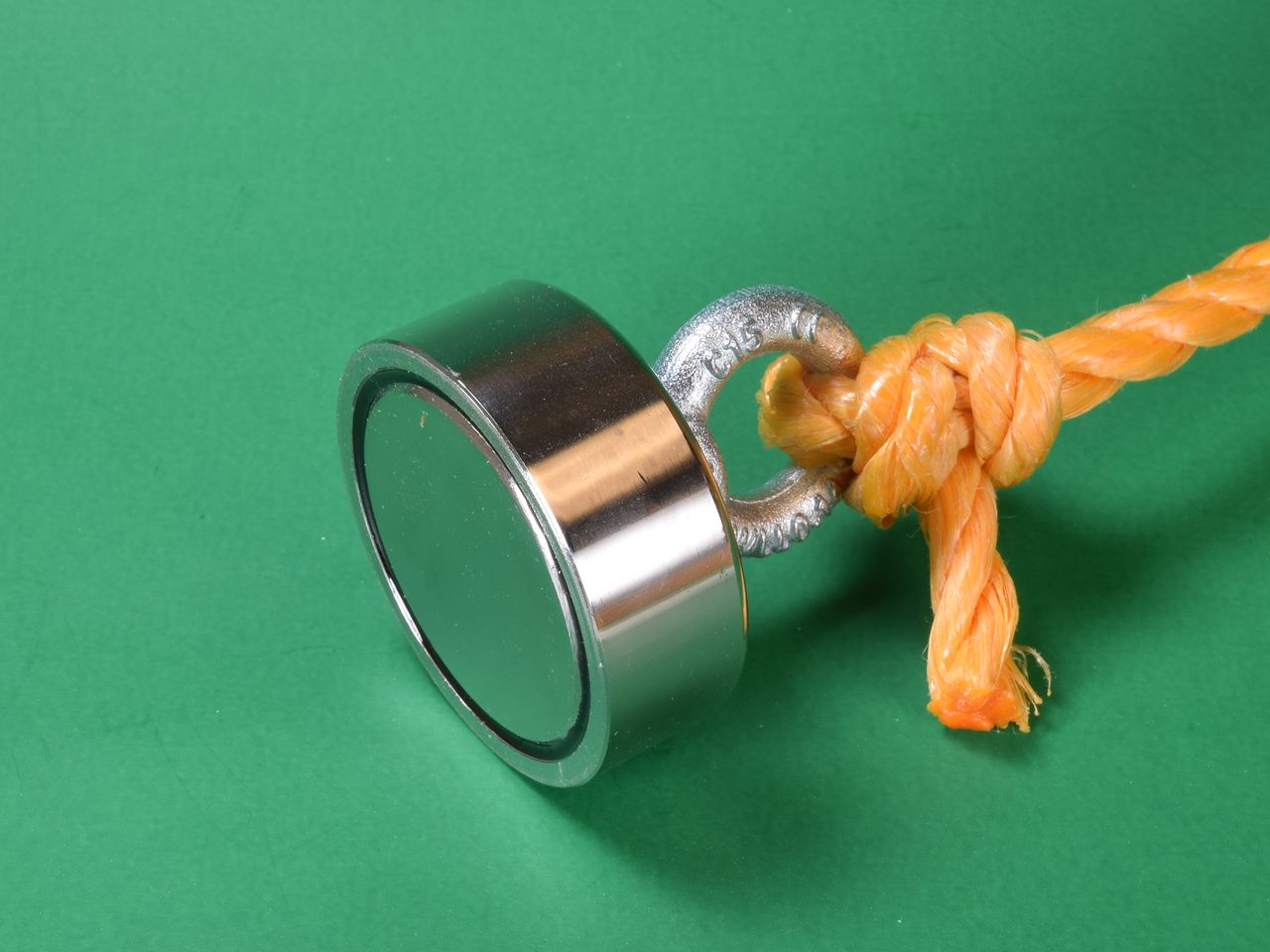

This 60mm size is the middle size in our new line of Magnet Fishing magnets. It has a very strong pull force, around 400 lb! This is a good "middle of the road" choice, balancing pull force and price. Just imagine what you can "catch" with a 400 lb pull force magnet!

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $34.95
