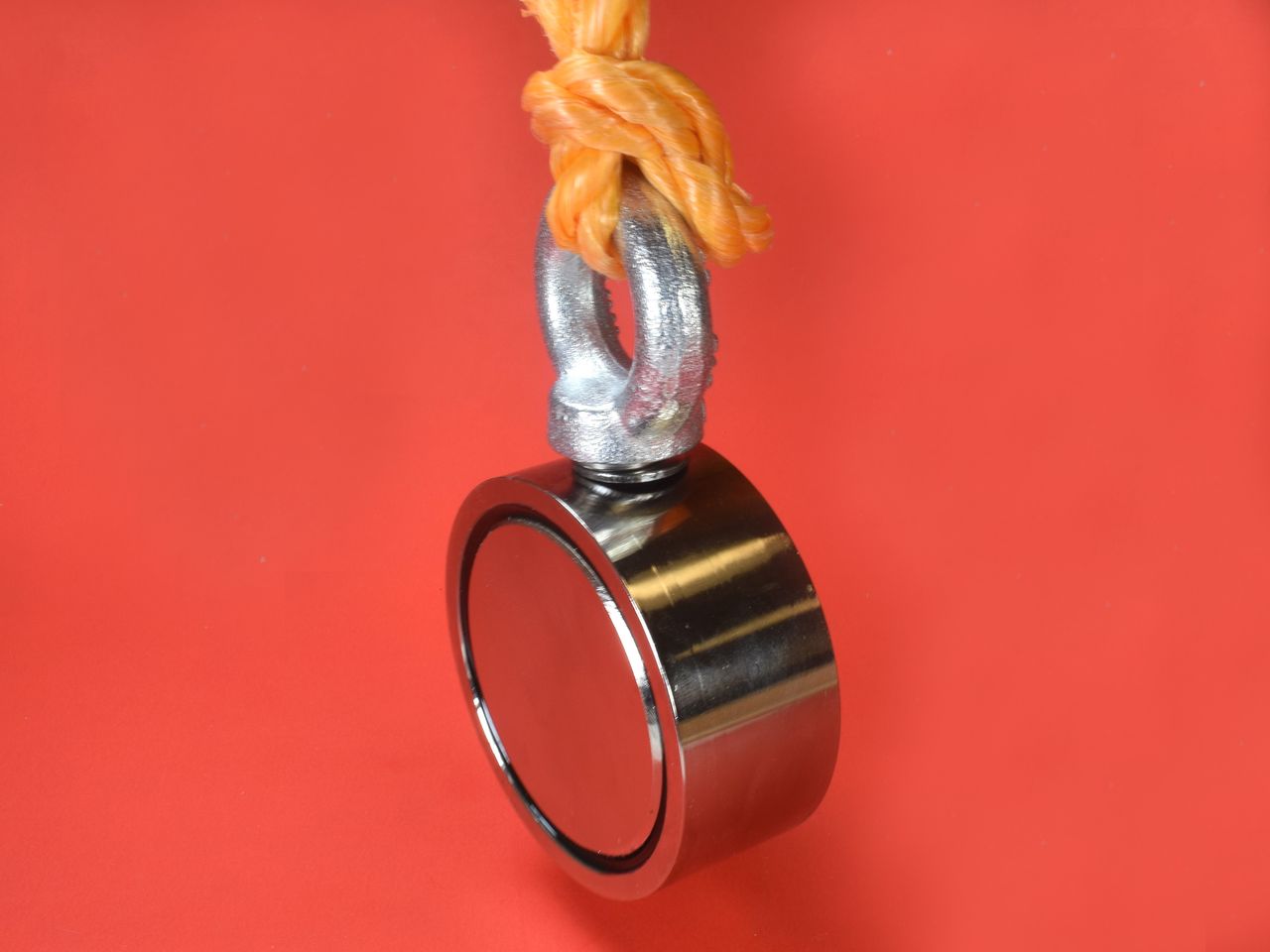

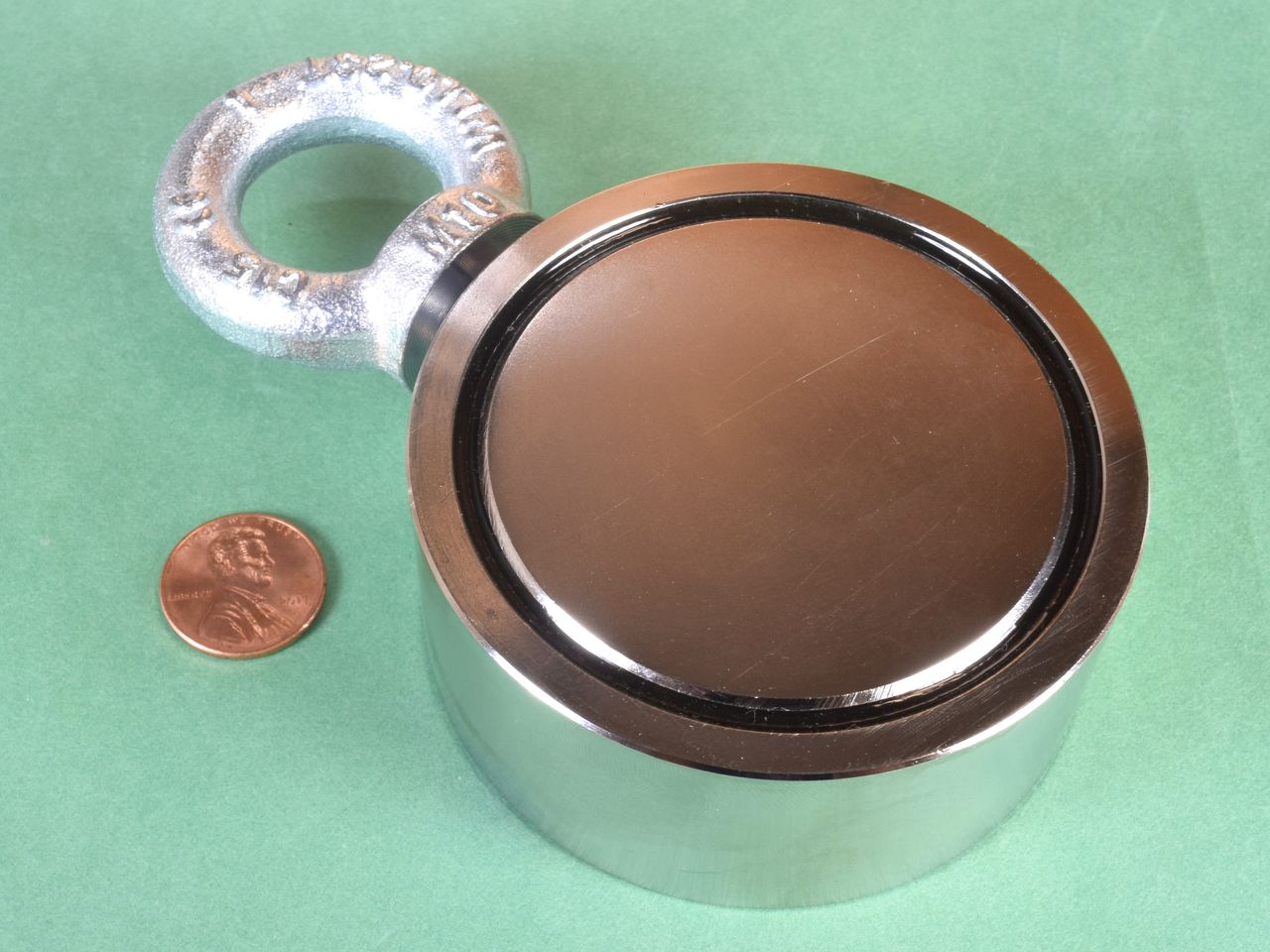

FM2-75 - Neodymium Double Sided Fishing Magnet

Description
Downloads

Dimensions:
D=75mm (2.95")
H=32mm (1.26")
M=10mm (0.39") (M10 Coarse threaded hook)
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 43.38 oz
Pull Force: 500 lbs (each side)
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

This 75 mm size is the largest size in our new line of Magnet Fishing magnets. It has a very strong pull force, around 500 lb! This is a good choice for experienced Magnet Fishers. Just imagine what you can "catch" with a 500 lb pull force magnet! It has a 500 lb pull force on both sides.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
