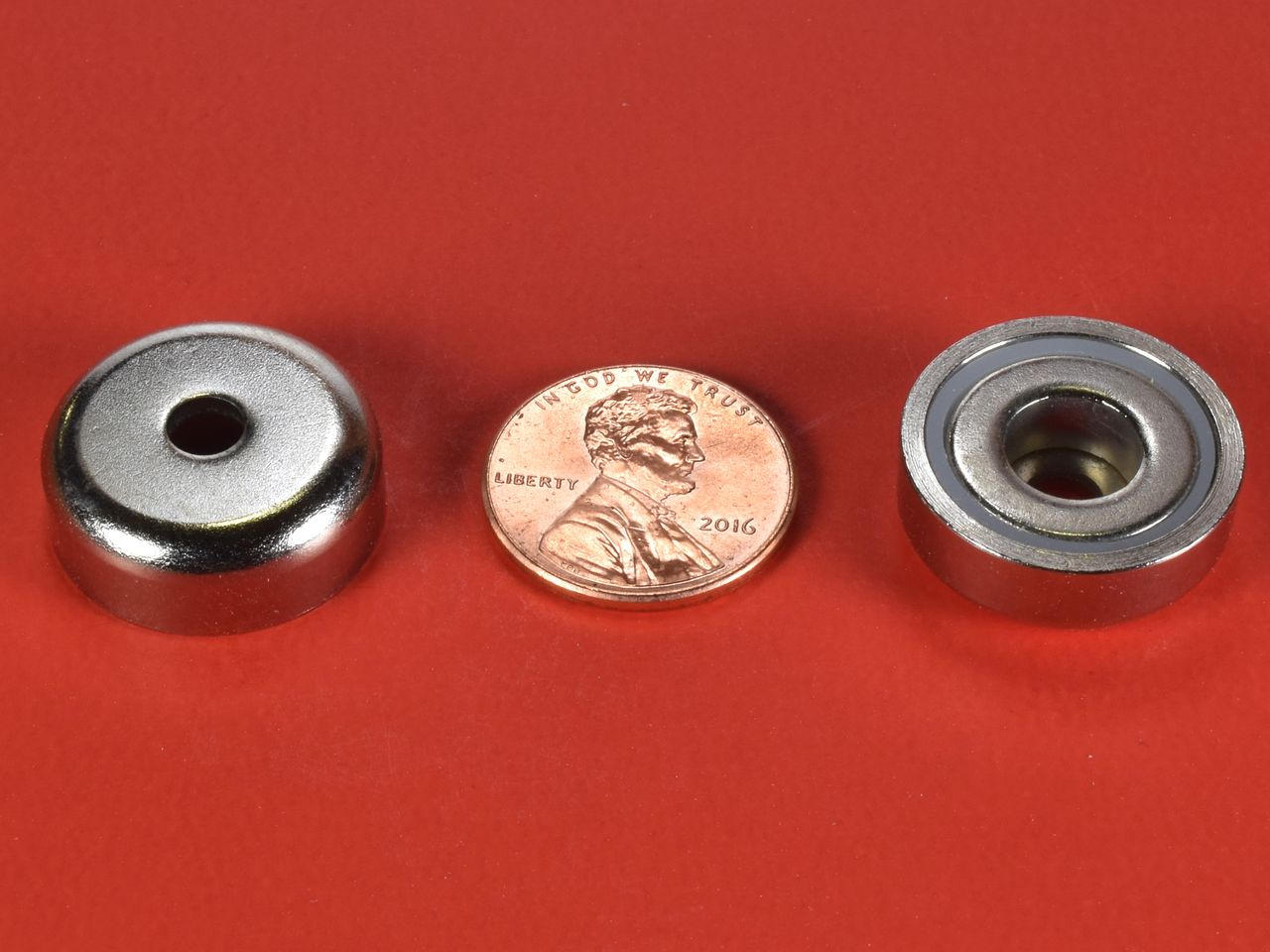

MM-B-20 - Counterbored Mounting Magnet

MM-B-20

MM-B-20

Description
Technical
Downloads

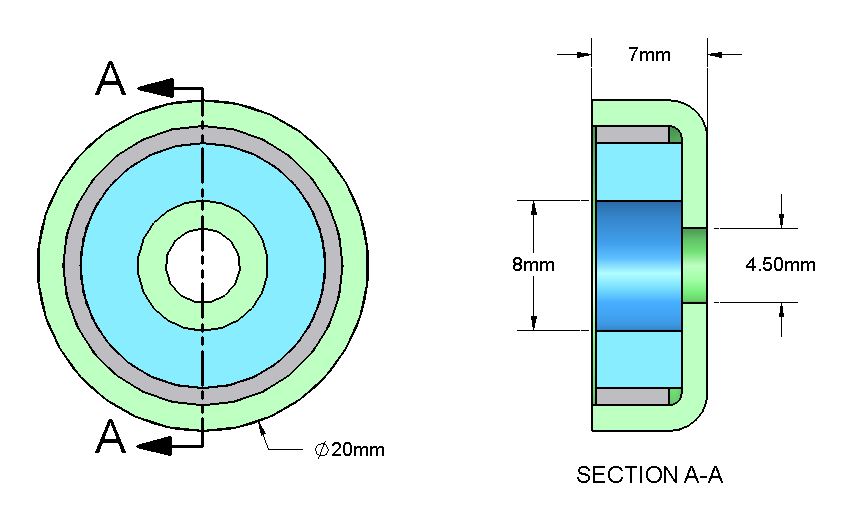

Dimensions:
    D=20mm (0.79")
    d1=4.5mm (0.18") (Sized for M4 screw)
    d2=8.5mm (0.33") (Straight counterbored hole)
    h=7mm (0.28")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.42 oz. (11.9 g)
Pull Force: 13.2 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

The MM-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $2.94

Quantity:

Qty:

Price ea.	Qty
$2.94	1-4
$2.87	5-9
$2.81	10-24
$2.74	25-49
$2.68	50-99
$2.61	100-249
$2.55	250-499
$2.48	500-999
$2.42	1000-2499
$2.35	2500-4999
For pricing at higher order quantities, please email us!
