MM-C-20 - Neodymium Male Stud Mounting Magnet | K&J Magnetics

Description
Technical
Downloads

Dimensions:
    D=20mm (0.79")
    M=4mm (0.16") (M4 Coarse Male threaded stud)
    H=15mm (0.59")
    h=7mm (0.28")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.53 oz. (15.0 g)
Pull Force: 28.7 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

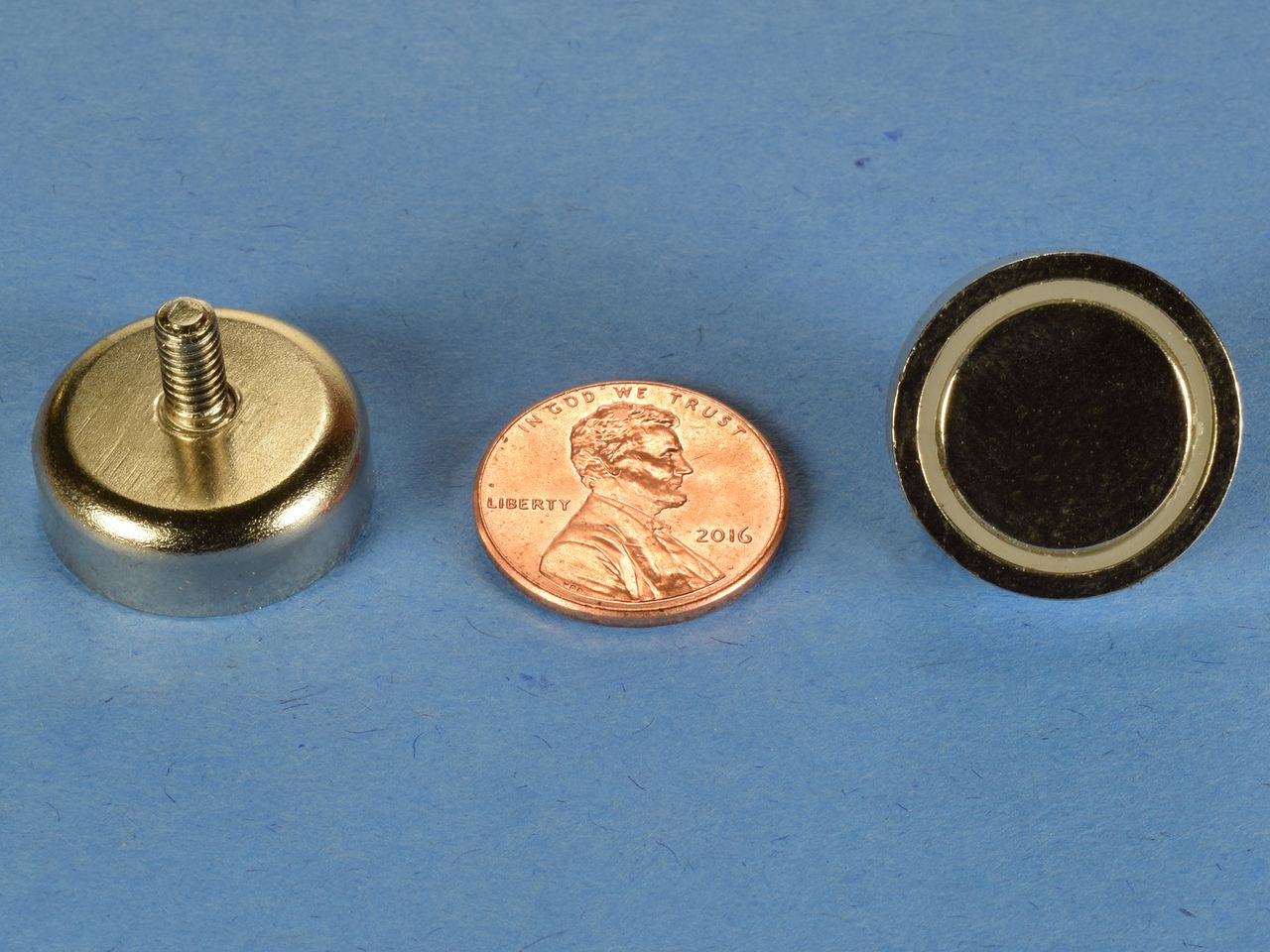

The MM-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.

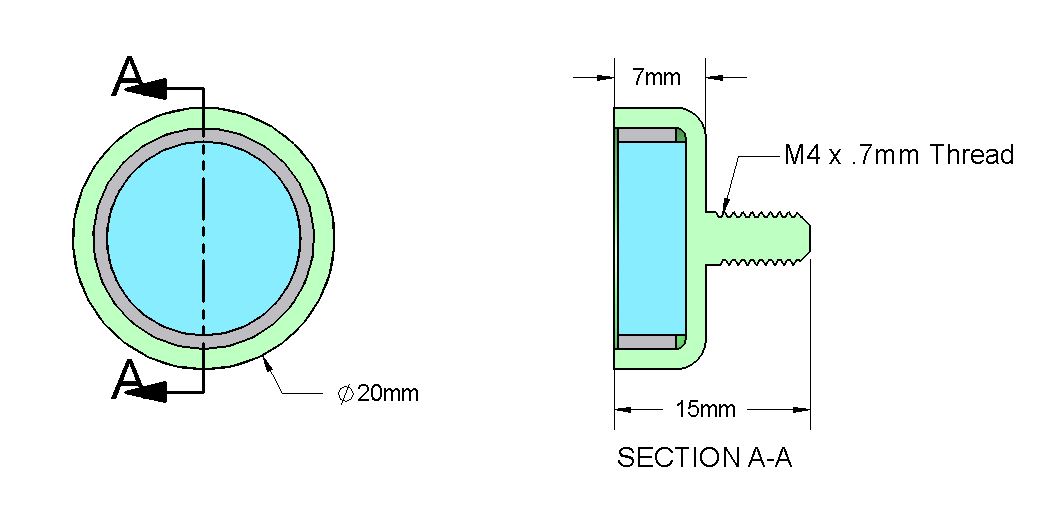

	Click here to download a PDF drawing of this product.
