MMS-A-X8

Description
Technical
Downloads

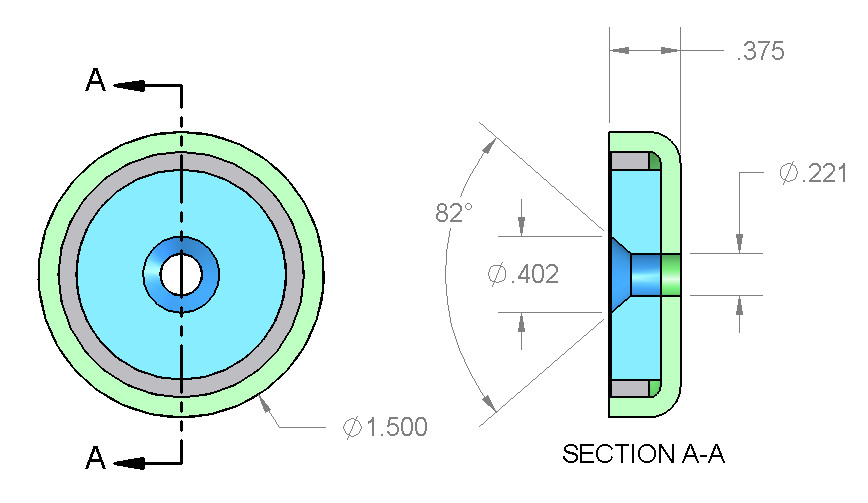

Dimensions:
    Diameter= 1 1/2" (1.5")
    Hole Size= #10 Screw
    Height= 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 2.51 oz. (71.29 g)
Pull Force: 92.34 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

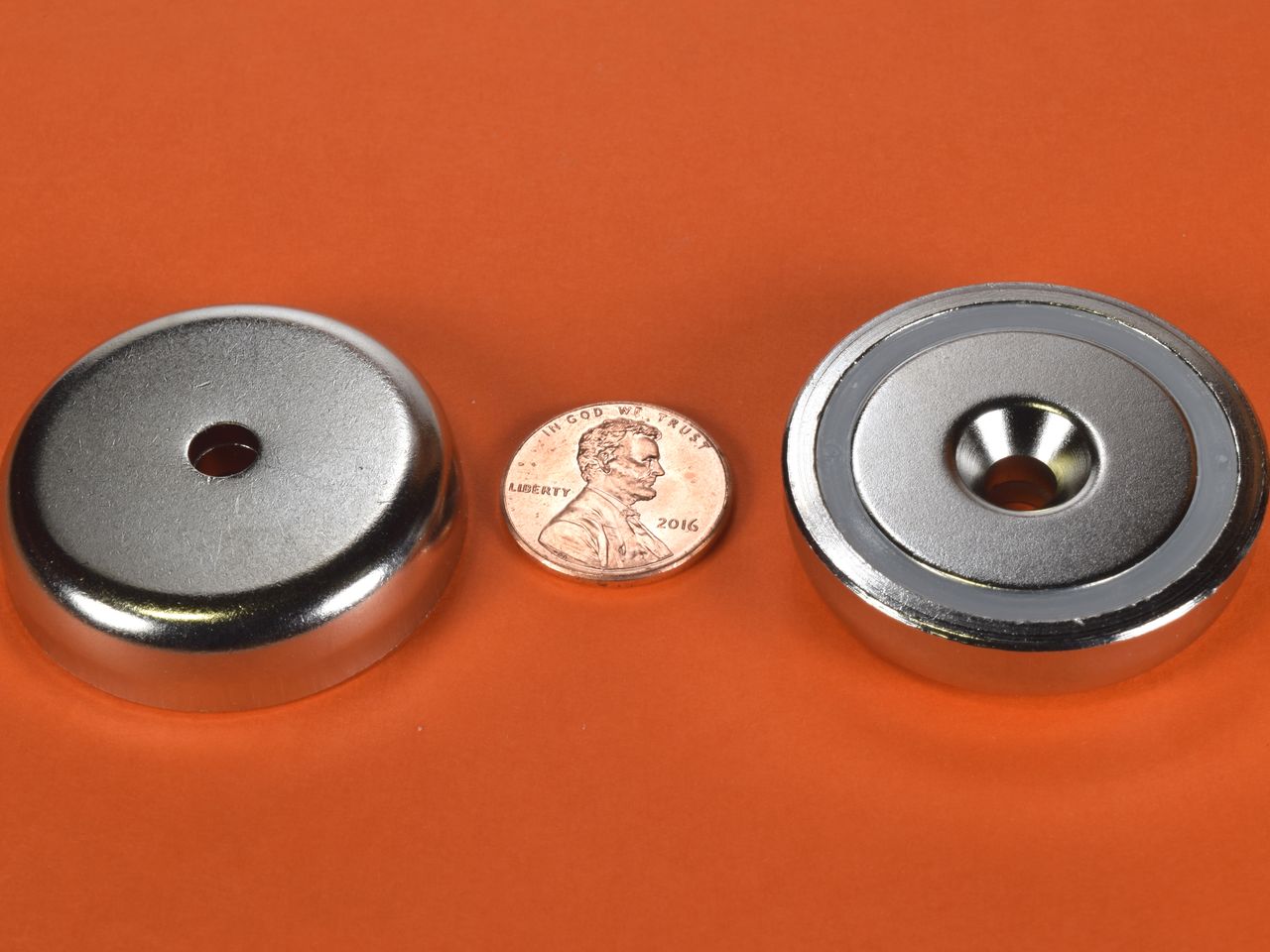

The MMS-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $9.00

Quantity:

Qty:

Price ea.	Qty
$9.00	1
$8.80	2-4
$8.60	5-9
$8.40	10-24
$8.20	25-49
$8.00	50-99
$7.80	100-249
$7.60	250-499
$7.40	500-999
$7.20	1000-2499
For pricing at higher order quantities, please email us!
