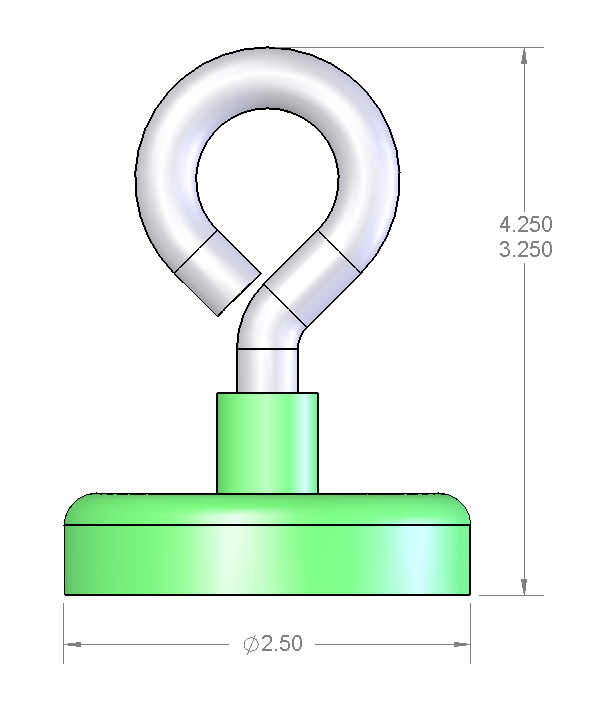

• Dimensions:
      Diameter = 2 1/2" (2.50")
      Height = 4 1/4" (4.25")
      Hook Attachment = 3/8"-16 Threaded Eye Hook
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 15.6 oz. (442.1 g)
• Pull Force: 259.1 lbs
• Surface Field: N/A
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

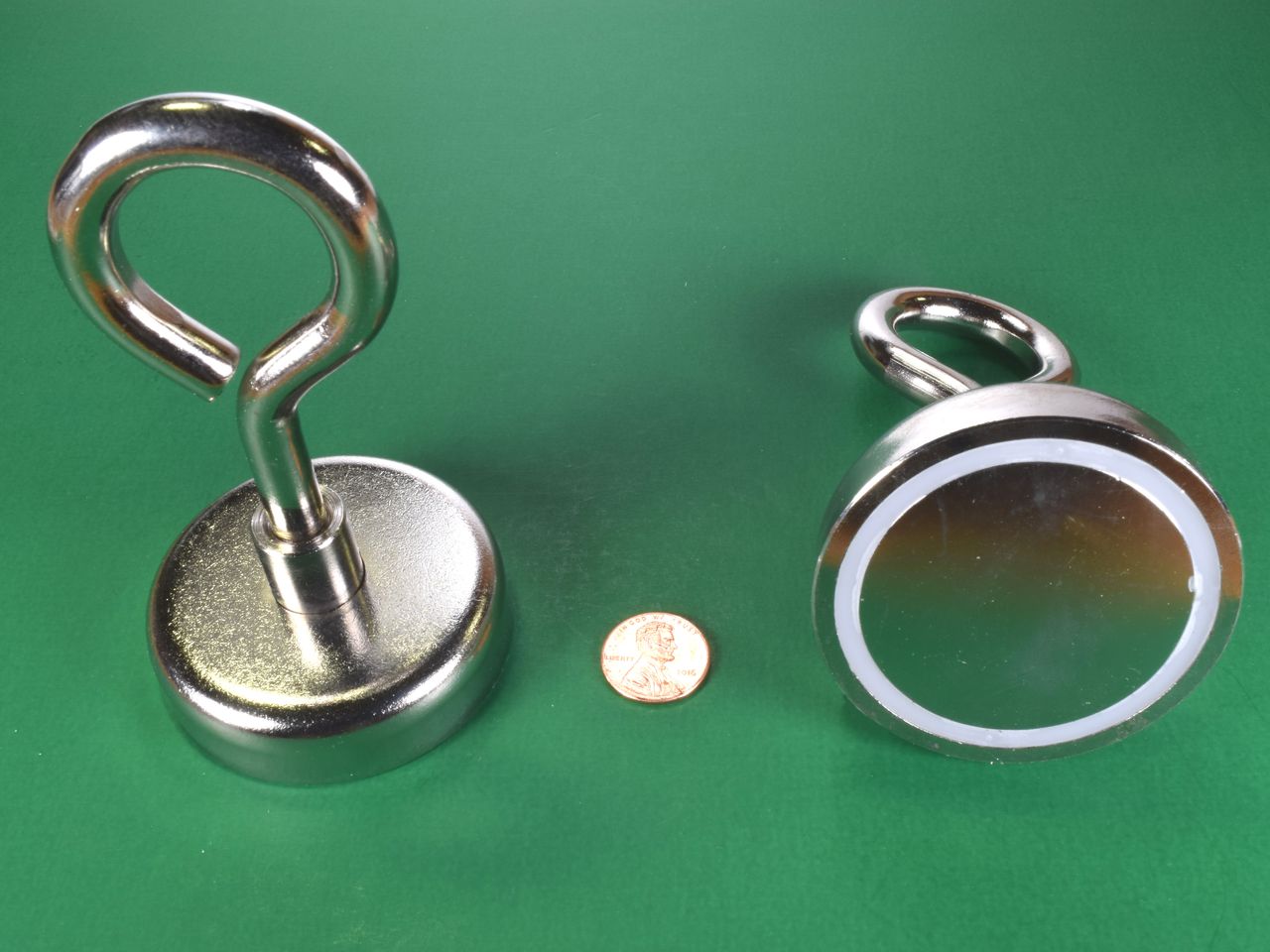

The MMS-G is an incredibly powerful magnet with an eye hook attached. Need to hang something in or on your locker? fridge? filing cabinet? This is the magnet you need! If you've ever fought to position a drop light while you were working on a car, or anything for that matter, you understand how valuable one of these magnetic eye hooks could be for unrestricted light placement. The possible uses for these great magnets are unlimited! The eye hook, magnet and mount are all nickel plated to resist corrosion and to provide that nice shiny, silver finish.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
