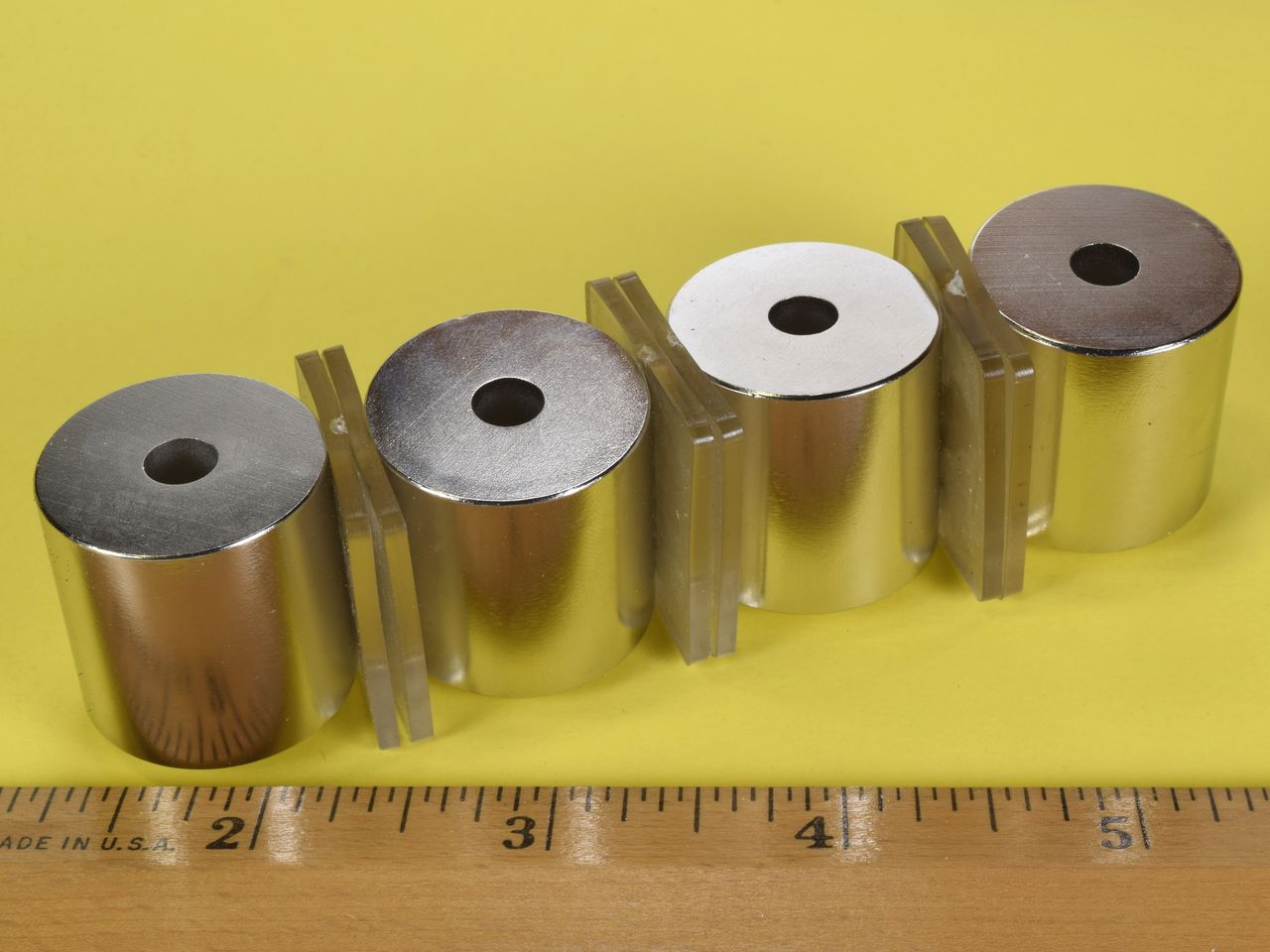

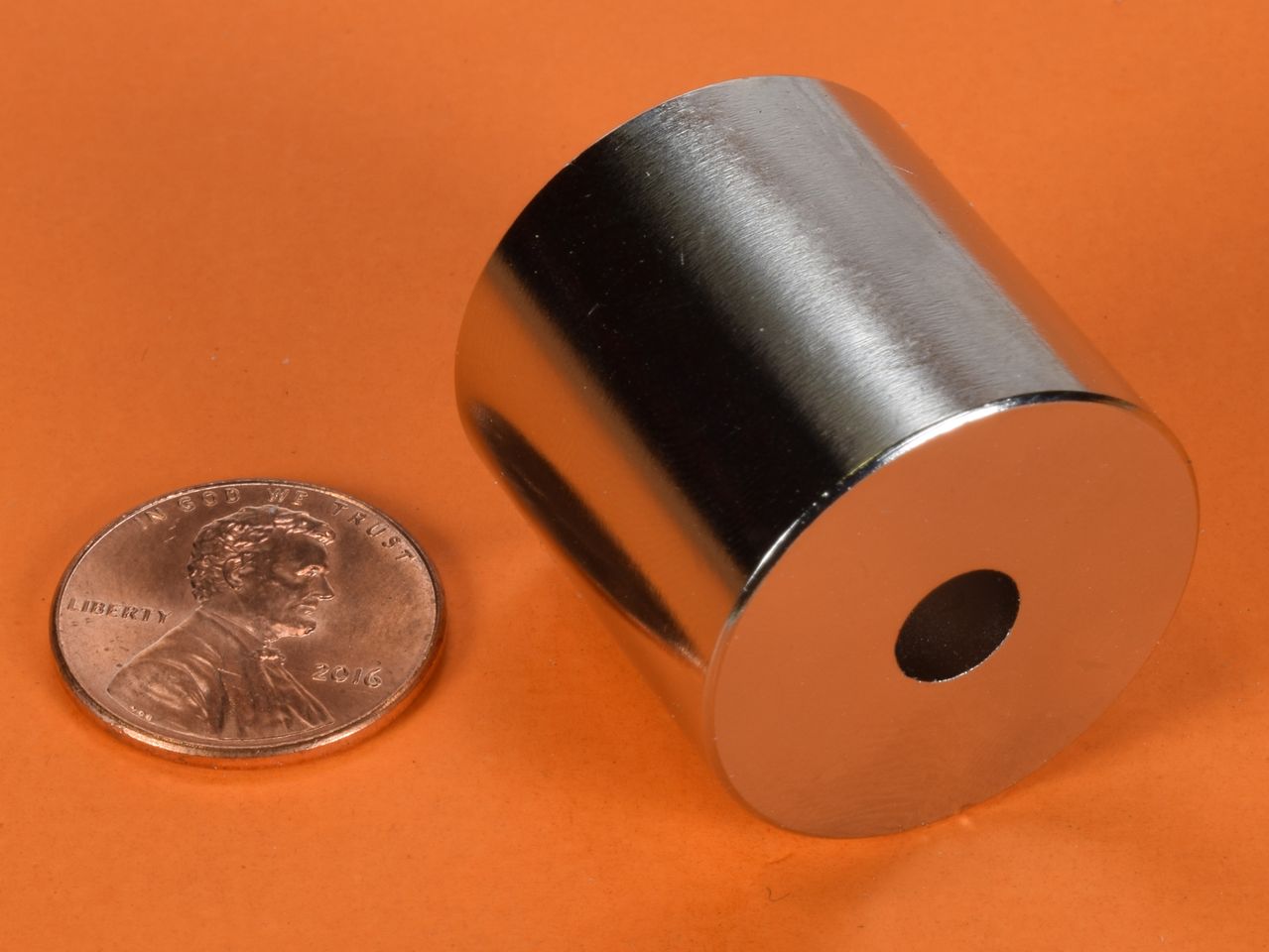

RX04X0DIA - Neodymium Ring Magnet

Description
Technical
Downloads

Dimensions: 1" od x 1/4" id x 1" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Diametrical
Weight: 3.19 oz. (90.5 g)
Pull Force, Case 1: 40.44 lbs
Pull Force, Case 2: 49.01 lbs
Surface Field: 6909 Gauss
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These rings are diametrically magnetized, which means they are magnetized perpendicular to the axis of the hole. The poles are located on opposite sides of the circular faces. They can be placed on a shaft to work with sensors or to generate electricity.

This size is also available Axially Magnetized as part number RX04X0.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $22.77

Quantity:

Qty:

Price ea.	Qty
$22.77	1
$22.26	2
$21.76	3-4
$21.25	5-6
$20.75	7-9
$20.24	10-24
$19.74	25-49
$19.23	50-99
$18.73	100-249
$18.22	250-499
For pricing at higher order quantities, please email us!
