ZD2 - Surplus Magnet

Description

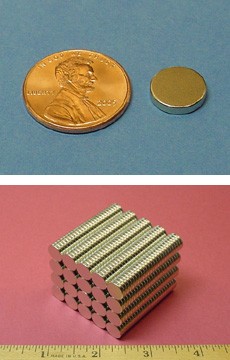

Dimensions: 10mm dia. x 2mm thick
Tolerances: ±0.1mm x ±0.1mm
Material: NdFeB, Grade N35
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0418 oz. (1.18 g)
Pull Force, Case 1: 2.20 lbs
Pull Force, Case 2: 8.09 lbs
Surface Field: 2247 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 12,100 Gauss
BHmax: 35 MGOe

This size is slightly larger than 3/8" x 1/16". Buy a bunch of these handy discs at a great price!

These magnets are sold in packs of 25. Order a quantity of 1 and get 25 magnets. Order a quantity of 2 and get 50 magnets. Order a quantity of 3 and get 75...

Price: $8.50
