- Description
- Technical
- Downloads
- Dimensions: 1 1/4" dia. x 3/8" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 1.995 oz. (56.56 g)
- Pull Force, Case 1: 48.26 lbs
- Pull Force, Case 2: 89.80 lbs
- Surface Field: 3396 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

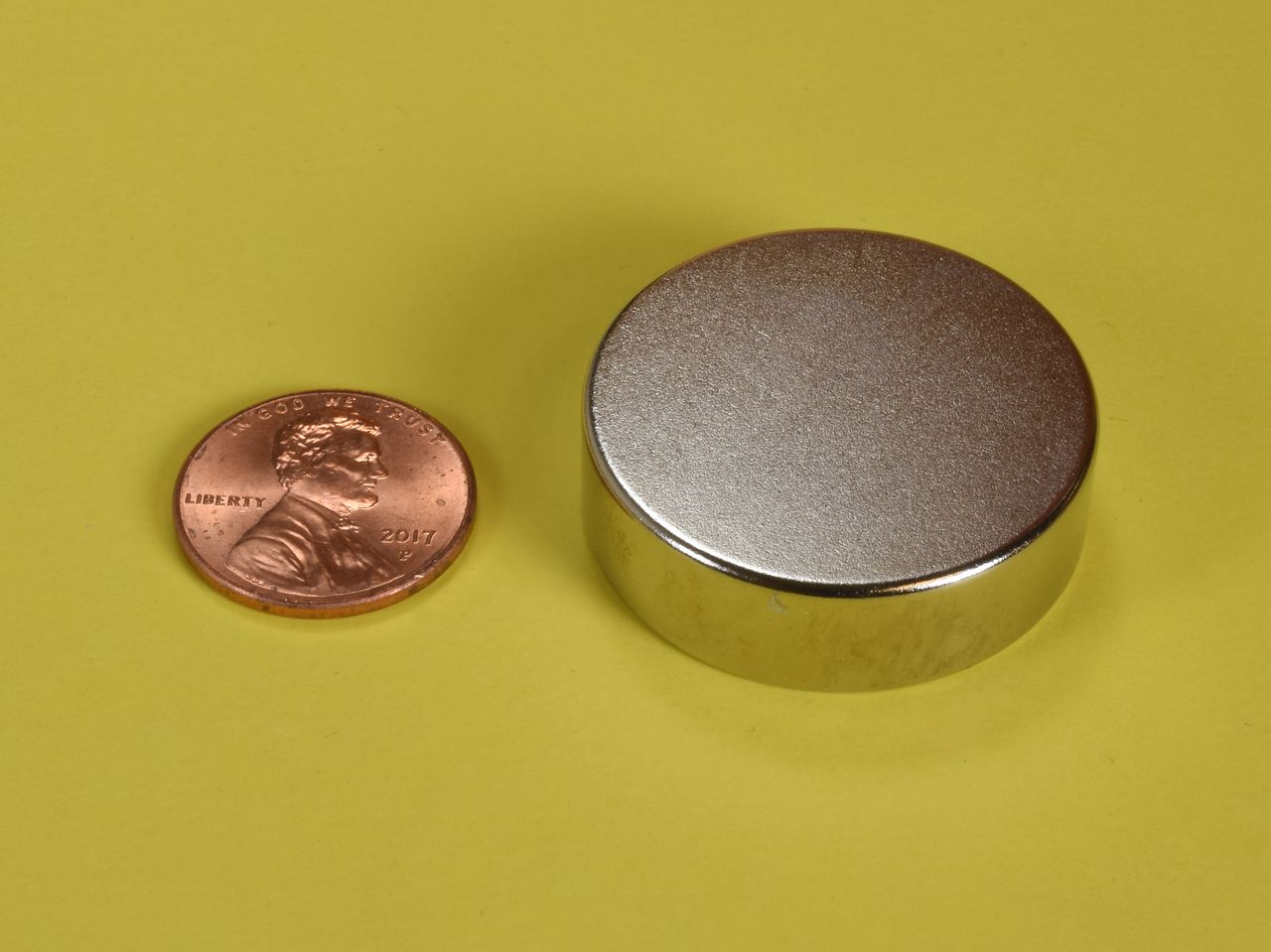

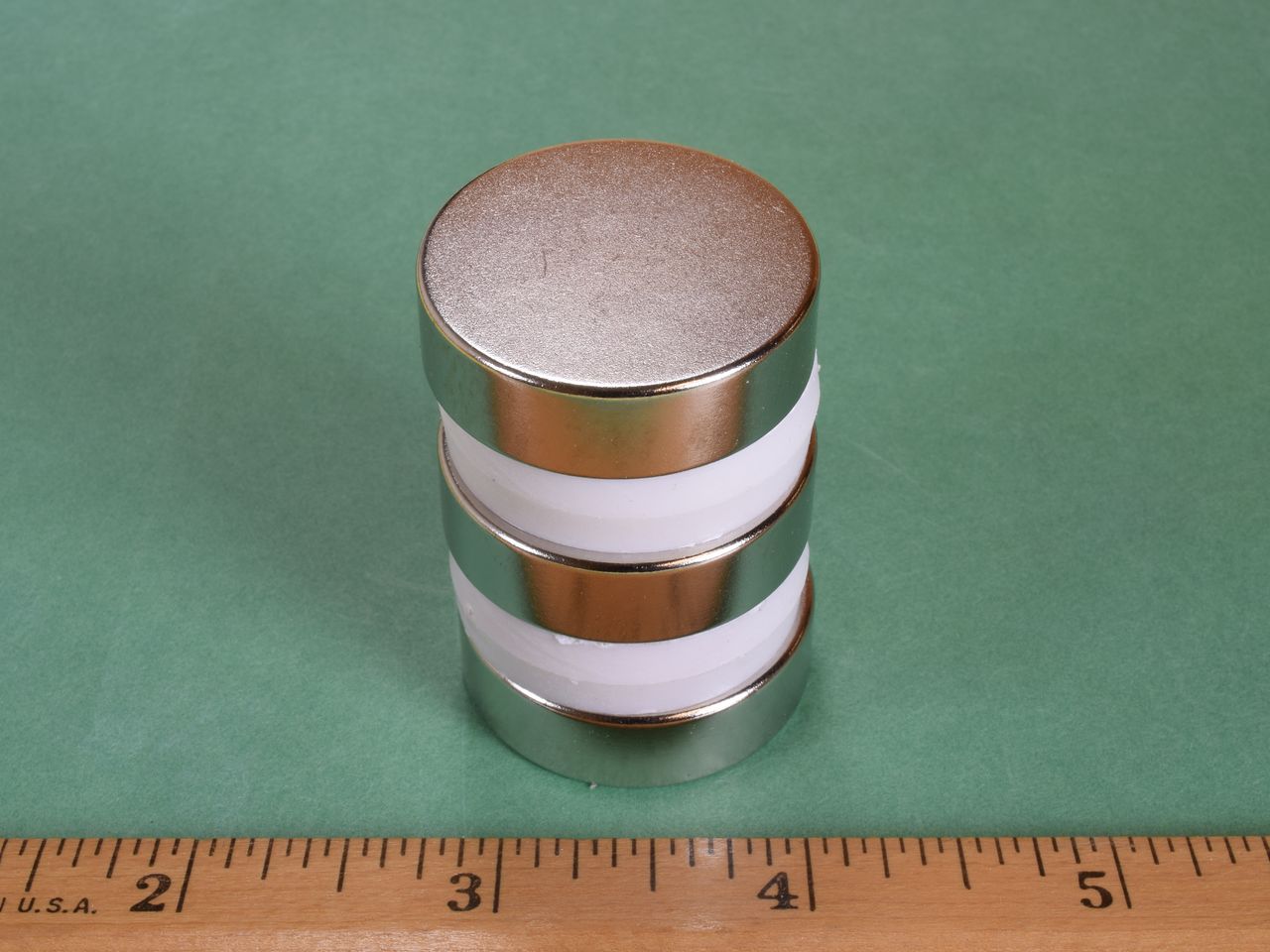

These strong discs are a great option for a variety of heavy holding applications. They are sturdy and powerful, so therefore, amazingly useful. The DX46 is tough to separate by hand... but not impossible. They may be compact but they can still pinch quite hard if handled improperly.
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. | |
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. | |
Pull Force, Case 3 vs. distance: Magnet to Magnet. | |
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. | |
Click this link for a depiction of the magnetic field. | |
View B-H curves for this magnet. |
Click this link to download a PDF Specification Sheet. | |
Click this link to download a PDF drawing of this product. | |
Click this link to download a Certificate of Compliance for this product. | |
Click this link to download a RoHS Statement of Compliance for this product. | |
Click this link to download a Material Safety Data Sheet (MSDS) for this product. | |
Click this link to download a Conflict Minerals Reporting Template (CMRT). | |
Click this link to download a Certificate of Origin for this product. | |
Click this link for a REACH compliance statement. | |
Click this link to download a .STEP file (3D model). | |
Click this link to download an .IGS file (3D model). |
