TT-6 Specifications
-
Grade:Hover over grades for temp info:Grade N
Min: -238°F (-150°C) Max: 176°F (80°C)
- N
- NM
- NH
- NSH
- NUH
- NEH
- NAH
N42 -
Max Operating Temp: Maximum operating temperature, also known as maximum service temperature, is the temperature at which the magnet may be exposed to continuously with no significant long-range instability or structural changes. Learn more in our Temperature and Neodymium Magnets article.176°F (80°C)
-
Material: This lists the name of the material each product is composed of.Neodymium (NdFeb)
-
BH Max: BH max is the Maximum Energy Product at the point on the B/H Curve that has the most strength, expressed in MGOe (MegaGaussOersteds). When describing the grade of a neodymium magnet, this number is commonly referred to as the "N" number, as in Grade N52 magnets. Learn more about Bh max in our glossary.42 MGOe
-
Weight: This is the weight of a single magnet in ounces and grams.2.71 oz (76.83 g)
-
Br Max: Br max is also called "Residual Flux Density" and is when the magnetic induction remaining in a saturated magnetic material after the magnetizing field has been removed. This is the point at which the hysteresis loop crosses the B axis at zero magnetizing force, and represents the maximum flux output from the given magnet material. By definition, this point occurs at zero air gap, and therefore cannot be seen in practical use of magnet materials. Learn more about Br max in our glossary.13,200 Gauss
-
Color: The color of the coating or plating on the product.Silver

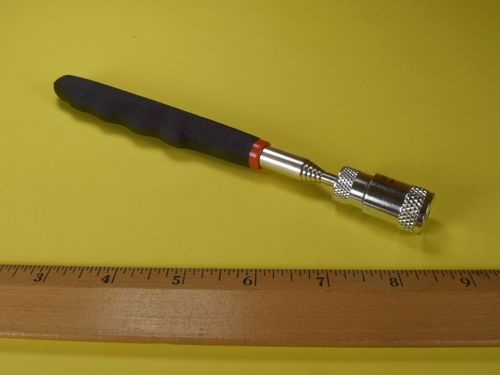

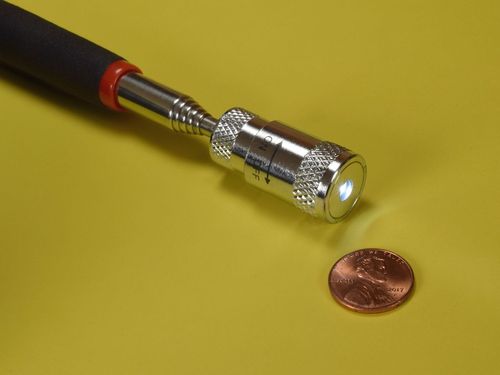

Telescoping Pick-Up Tool extends from 7.5" out to 31". Our new TT-6 telescoping pick-up tool is constructed with a strong 14mm diameter neodymium magnet, providing a test pull force of about 8 lb. This allows our tool to pick up more weight than other pick-up tools on the market. This model has a bright LED light on the end to help you find that object you dropped, or to get a light in a hard to reach place! A must-have for all mechanics in your life. Powered by 3 LR44 batteries (included).
