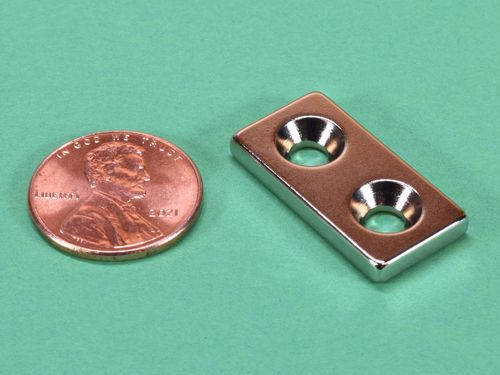

1 x 1/2 x 1/8 Inch Neodymium Rare Earth Countersunk Block Magnet N52 (#6 screw) PN: BX082CS-N-N52

• Dimensions: 1" x 1/2" x 1/8" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.233 oz. (6.61 g)
• Pull Force, Case 1: 11.03 lbs
• Pull Force, Case 2: 38.94 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

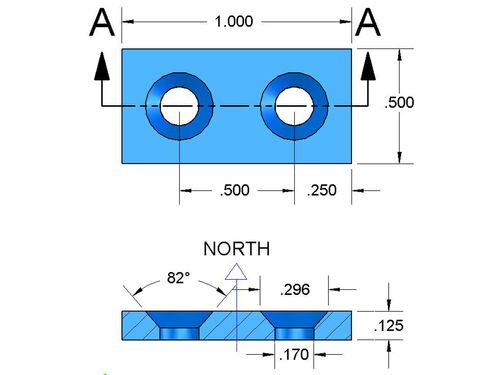

Here we offer the popular size of 1" x 1/2" in 1/8" thickness with holes for two #6 flathead screws and in the strong grade N52. The BX082CS-N-N52 is magnetized with the north pole on the countersink side. Also available in grade N42, BX082CS-N.

These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
