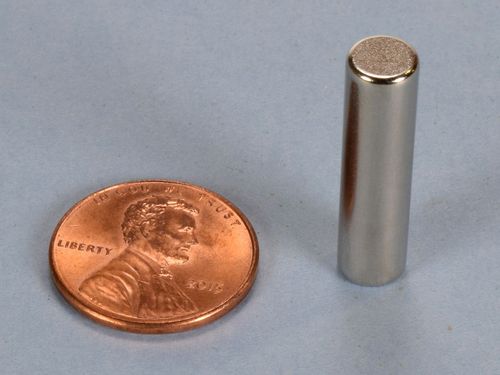

1/4 x 1 Inch Neodymium Rare Earth Cylinder/Rod Magnet N52 PN: D4X0-N52

• Dimensions: 1/4" dia. x 1" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.213 oz. (6.03 g)
• Pull Force, Case 1: 5.11 lbs
• Pull Force, Case 2: 5.11 lbs
• Surface Field: 7343 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

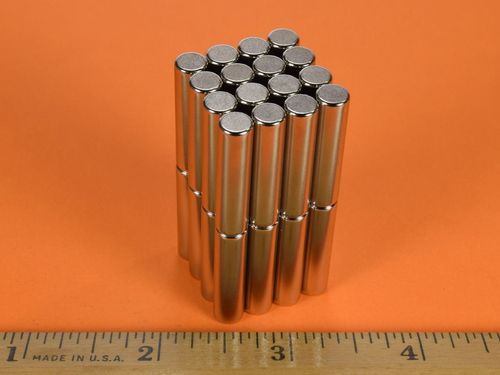

These strong cylinders are a nice size to grasp with ease. Two of them pinching a piece of string between them make a great homemade compass. They are strong, yet easy to handle.

This size is also available diametrically magnetized in Grade N52 as part number D4X0DIA-N52, in grade N42 as part number D4X0 and in Grade N42 with a small dimple on the north end as part number D4X0-ND.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
