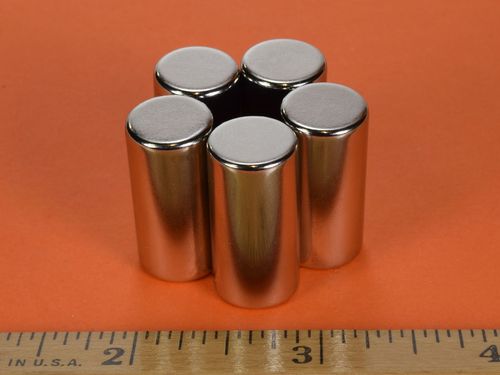

1/2 x 1 Inch Neodymium Rare Earth Diametric Cylinder Magnet N42 PN: D8X0DIA

• Dimensions: 1/2" dia. x 1" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Diametrical
• Weight: 0.851 oz. (24.1 g)
• Pull Force, Case 1: 22.33 lbs
• Pull Force, Case 2: 29.34 lbs
• Surface Field: 7157 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These diametrically magnetized cylinders are very powerful.  They are magnetized perpendicular to the axis of the cylinder, so they will attract "side-to-side" with great force.

This size is also available axially magnetized as part number D8X0.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
