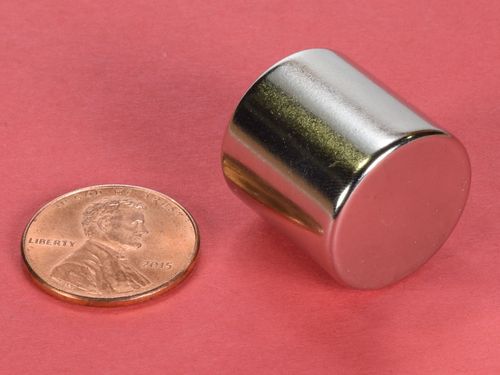

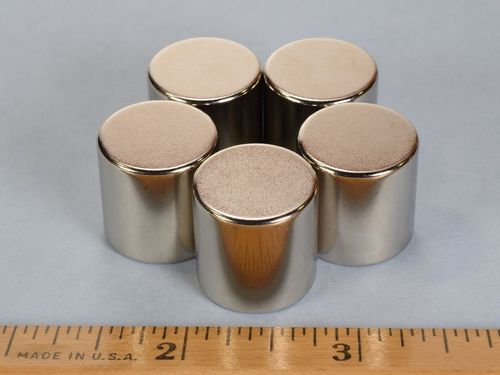

3/4 x 3/4 Inch Neodymium Rare Earth Diametric Cylinder Magnet N42 PN: DCCDIA

• Dimensions: 3/4" dia. x 3/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Diametrical
• Weight: 1.44 oz. (40.7 g)
• Pull Force, Case 1: 25.54 lbs
• Pull Force, Case 2: 32.22 lbs
• Surface Field: 7220 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These diametrically magnetized cylinders are very powerful.  They are magnetized perpendicular to the axis of the cylinder, so they will attract "side-to-side" with great force.  They "feel" stronger and are more difficult to handle than the axially magnetized cylinders of the same size.

Also available in this size: DCC (Grade N42, Axially Magnetized) and DCC-N52 (Grade N52, Axially Magnetized)



	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
