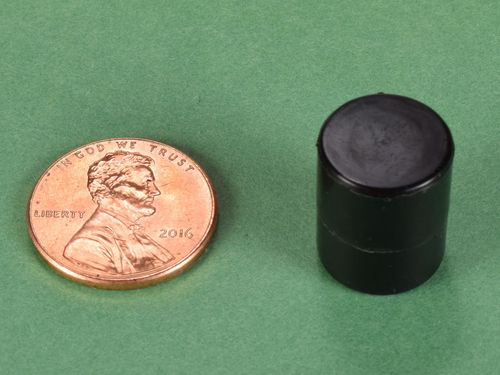

1/2 x 5/8 Inch Neodymium Rare Earth Plastic Coated Cylinder Magnet N42 PN: D8APC-BLK

• Dimensions: 1/2" dia. x 5/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni-Plastic
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.393 oz. (11.1 g)
• Pull Force, Case 1: 5.79 lbs
• Pull Force, Case 2: 7.19 lbs
• Surface Field: 5299 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

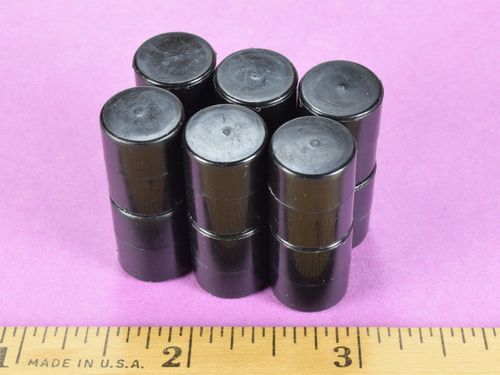

These great magnets are coated with a durable layer of plastic. The 1/2" x 5/8" dimensions are the finished dimensions of the plastic coating. These cylinders are easy to handle and can be slammed together many times without damage. They won't mark or scratch surfaces they come in contact with. They are also completely weatherproof. These magnets are our first choice for finding studs in a wall.

Please note: Slight color variation may occur from order to order.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
