3/4 x 1/2 Inch Neodymium Rare Earth Disc Magnet N42 PN: DC8

3/4 x 1/2 Inch Neodymium Rare Earth Disc Magnet N42

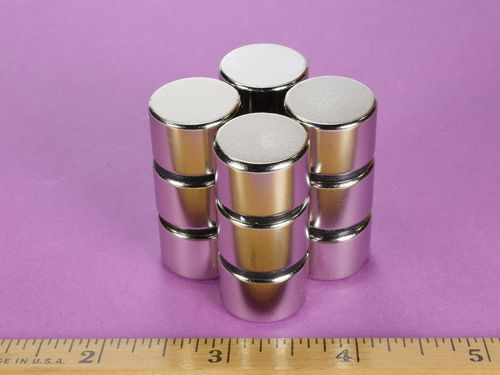

3/4 x 1/2 Inch Neodymium Rare Earth Disc Magnet N42 --thumbnail-1

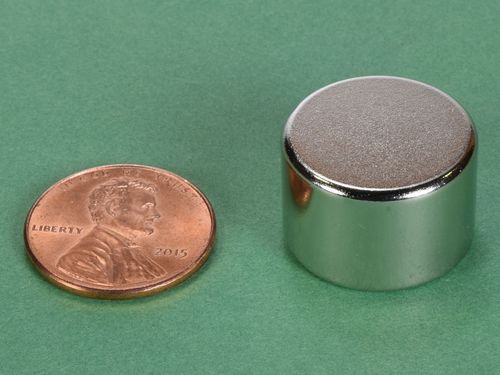

3/4 x 1/2 Inch Neodymium Rare Earth Disc Magnet N42 --thumbnail-2

$7.62

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$7.62	1
$7.45	2-4	2%
$7.28	5-9	4%
$7.12	10-24	7%
$6.95	25-49	9%
$6.77	50-99	11%
$6.60	100-249	13%
$6.43	250-499	16%
$6.26	500-999	18%
$6.10	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 3/4" dia. x 1/2" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.958 oz. (27.2 g)
Pull Force, Case 1: 27.60 lbs
Pull Force, Case 2: 36.40 lbs
Surface Field: 5280 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The DC8 is a very solid disc in 1/2" thickness. It is a very hefty and solid disc magnet, useful for a wide variety of medium-heavy applications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
