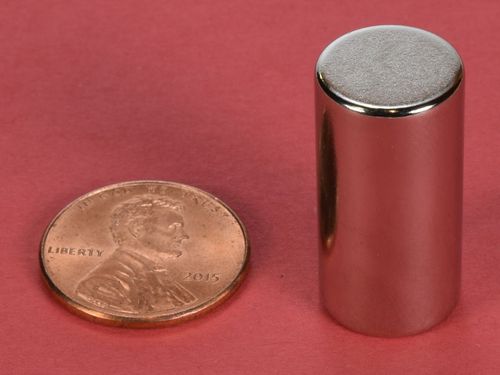

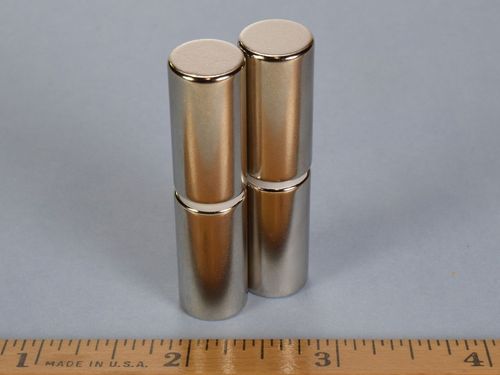

1/2 x 1 Inch Neodymium Rare Earth Cylinder/Rod Magnet N42 PN: D8X0

• Dimensions: 1/2" dia. x 1" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.851 oz. (24.1 g)
• Pull Force, Case 1: 16.60 lbs
• Pull Force, Case 2: 16.60 lbs
• Surface Field: 6403 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Strong and useful cylinder (aka rod) magnets. The D8X0 magnets are very strong, but are a great size that is easy to handle.

This size is also available diametrically magnetized as part number D8X0DIA.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
