5/8 x 3/16 Inch Neodymium Rare Earth Disc Magnet N42 PN: DA3

5/8 x 3/16 Inch Neodymium Rare Earth Disc Magnet N42

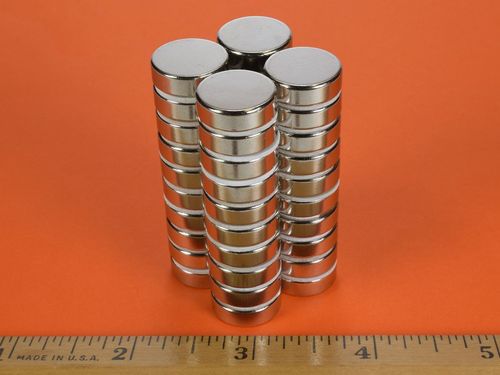

5/8 x 3/16 Inch Neodymium Rare Earth Disc Magnet N42 --thumbnail-1

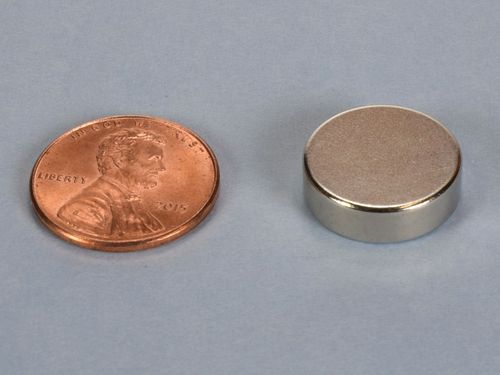

5/8 x 3/16 Inch Neodymium Rare Earth Disc Magnet N42 --thumbnail-2

$2.35

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.35	1-9
$2.30	10-24	2%
$2.24	25-49	5%
$2.20	50-99	6%
$2.15	100-249	9%
$2.09	250-499	11%
$2.04	500-999	13%
$1.99	1000-2499	15%
$1.93	2500-4999	18%
$1.88	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 5/8" dia. x 3/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.245 oz. (7.07 g)
Pull Force, Case 1: 12.74 lbs
Pull Force, Case 2: 26.30 lbs
Surface Field: 3396 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The DA3 discs are very strong and handy neodymium magnets. Much too strong to be considered toys, but they are perfect if you need a strong 5/8" diameter disc in 3/16" thickness.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
