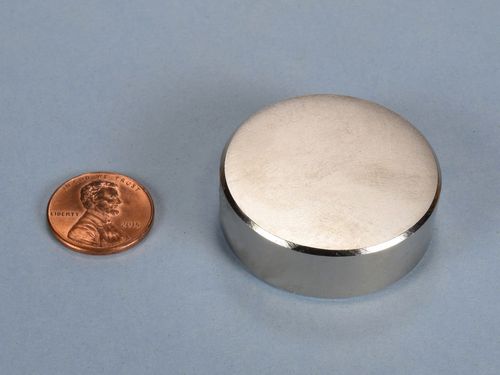

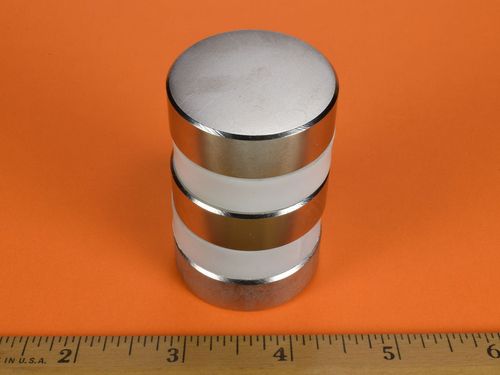

1 1/2 x 1/2 Inch Neodymium Rare Earth Disc Magnet N52 PN: DX88-N52

• Dimensions: 1 1/2" dia. x 1/2" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 3.83 oz. (109 g)
• Pull Force, Case 1: 89.33 lbs
• Pull Force, Case 2: 148.8 lbs
• Surface Field: 4105 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

The DX88-N52 disc is ultra powerful and must be handled with great care. This disc can, and will, pinch if it is mishandled. The incredible strength of these discs makes them useful for heavy holding, locating steel objects, and other applications that require a very strong magnetic force. Please use caution when working with these magnets.

This size is also available in grade N42 as part number DX88.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
