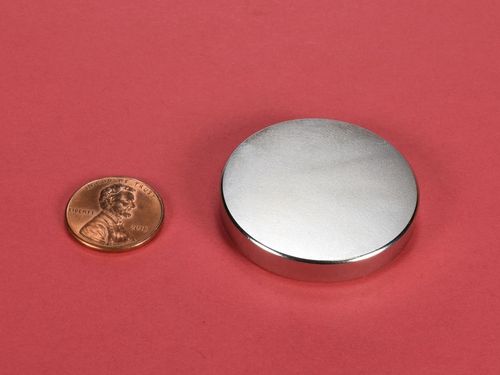

1 1/2 x 1/4 Inch Neodymium Rare Earth Disc Magnet N52 PN: DX84-N52

• Dimensions: 1 1/2" dia. x 1/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 1.92 oz. (54.3 g)
• Pull Force, Case 1: 42.10 lbs
• Pull Force, Case 2: 147.8 lbs
• Surface Field: 2340 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

The DX84-N52 is an incredibly powerful disc magnet.  These discs pack an incredible amount of holding power.  Two of them stuck together will be *very* difficult to separate.  These mighty, magnetic discs are no joke.  Be sure you understand the manner in which large neodymium magnets behave around metal objects and other magnets before ordering by reading our Neodymium Magnet Safety Page.

This size is also available in Grade N42 as part number DX84.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
