1 1/2 x 1/4 Inch Neodymium Rare Earth Ring Magnet N42 PN: RX884

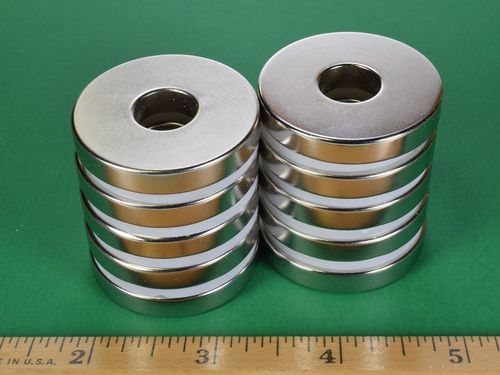

1 1/2 x 1/4 Inch Neodymium Rare Earth Ring Magnet N42 --thumbnail-1

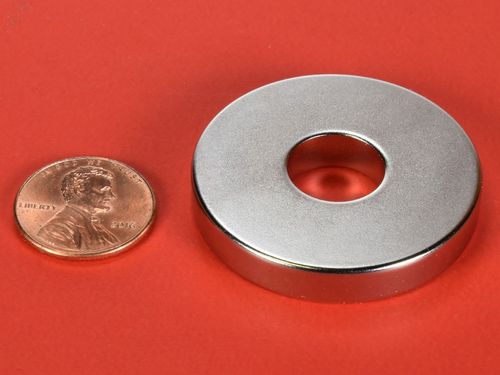

1 1/2 x 1/4 Inch Neodymium Rare Earth Ring Magnet N42 --thumbnail-2

$13.61

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$13.61	1
$13.31	2	2%
$13.01	3-4	4%
$12.70	5-9	7%
$12.40	10-24	9%
$12.10	25-49	11%
$11.80	50-99	13%
$11.48	100-249	16%
$11.18	250-499	18%
$10.88	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads
Video

Dimensions: 1 1/2" od x 1/2" id x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.70 oz. (48.3 g)
Pull Force, Case 1: 32.97 lbs
Pull Force, Case 2: 109.1 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The RX884 is uniquely sized and very strong! The 1/4" thickness and the wide inner diameter of this magnet make for a powerful ring that is perfectly suited for use in many specialized scientific, industrial and medical applications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
