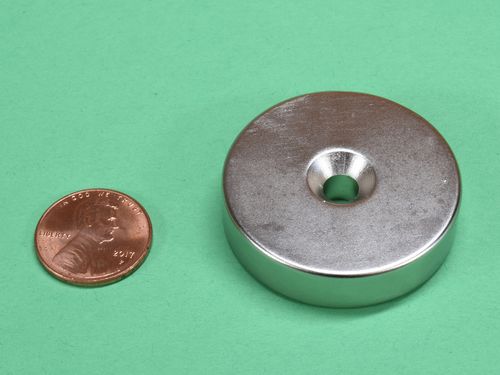

1 1/2 x 3/8 Inch Neodymium Rare Earth Countersunk Ring Magnet N42 (#10 screw) PN: ZRX836CS-N

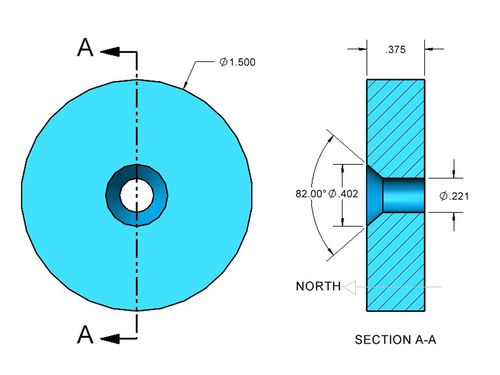

• Dimensions: 1 1/2" od x 0.221" id x 0.402" id x 3/8" thick w/ hole to accept #10 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 2.77 oz. (78.7 g)
• Pull Force, Case 1: 55.95 lbs
• Pull Force, Case 2: 113.2 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The ZRX836CS-N is similar to our RX836DCS, but with only one countersunk hole on the north pole. This is a surplus "clearance" item, so get them at a discounted price while supplies last!   Perfect for attaching objects to painted surfaces, crafts, signage, displays and more.

See our full line of Countersunk Magnets.


	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.
