1 3/4 x 1/2 Inch Neodymium Rare Earth Ring Magnet N42 PN: RXC48

1 3/4 x 1/2 Inch Neodymium Rare Earth Ring Magnet N42

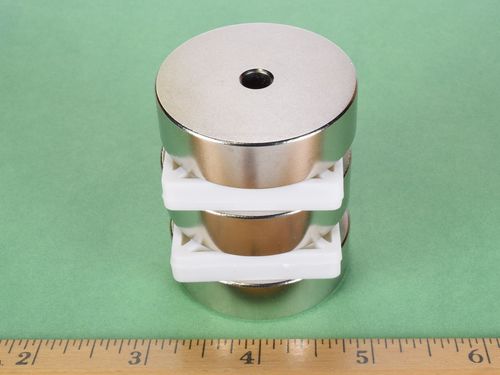

1 3/4 x 1/2 Inch Neodymium Rare Earth Ring Magnet N42 --thumbnail-1

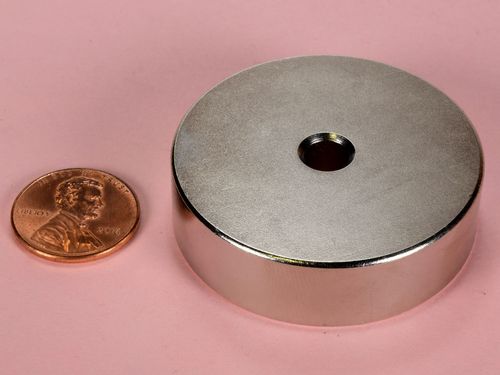

1 3/4 x 1/2 Inch Neodymium Rare Earth Ring Magnet N42 --thumbnail-2

$37.10

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$37.10	1
$36.28	2	2%
$35.45	3-4	4%
$34.63	5-6	7%
$33.80	7-9	9%
$32.98	10-24	11%
$32.15	25-49	13%
$31.33	50-99	16%
$30.50	100-249	18%
$29.68	250-499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads
Video

Magnetization direction

Dimensions: 1 3/4" od x 1/4" id x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 5.11 oz. (145 g)
Pull Force, Case 1: 83.86 lbs
Pull Force, Case 2: 159.0 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These large rings are very powerful and should be handled with care. The potential uses for a neodymium ring magnet of this size and strength are nearly limitless.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
