> RX424 - Neodymium Rare Earth Ring Magnet

RX424 - Neodymium Rare Earth Ring Magnet - 1 1/4" Dia x 1/8" ID x 1/4" Thi

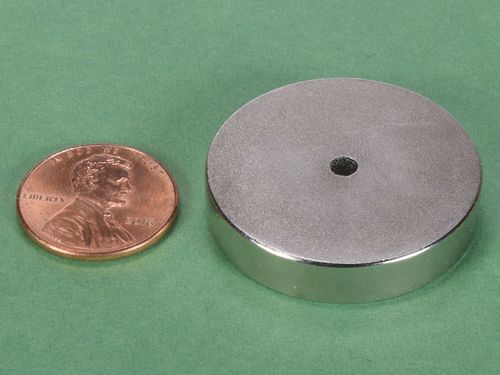

rx424-neodymium-rare-earth-ring-magnet--thumbnail-1

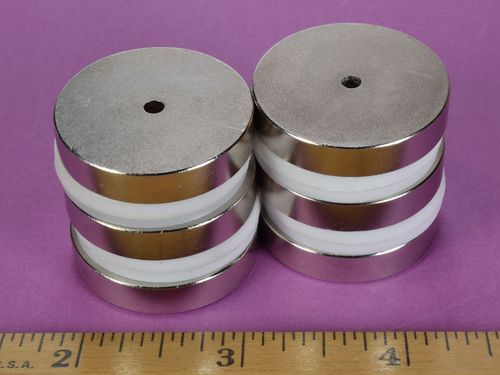

rx424-neodymium-rare-earth-ring-magnet--thumbnail-2

$10.56

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$10.56	1
$10.32	2-4	2%
$10.09	5-9	4%
$9.85	10-24	7%
$9.62	25-49	9%
$9.38	50-99	11%
$9.16	100-249	13%
$8.92	250-499	16%
$8.69	500-999	18%
$8.45	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1 1/4" od x 1/8" id x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.32 oz. (37.3 g)
Pull Force, Case 1: 30.76 lbs
Pull Force, Case 2: 88.57 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The RX424 is wide and flat. Its strength is quite impressive for its compact size. The 1/4" thickness of this ring makes it very sturdy as well. Great for science demonstrations and magnetic bearing appplications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
