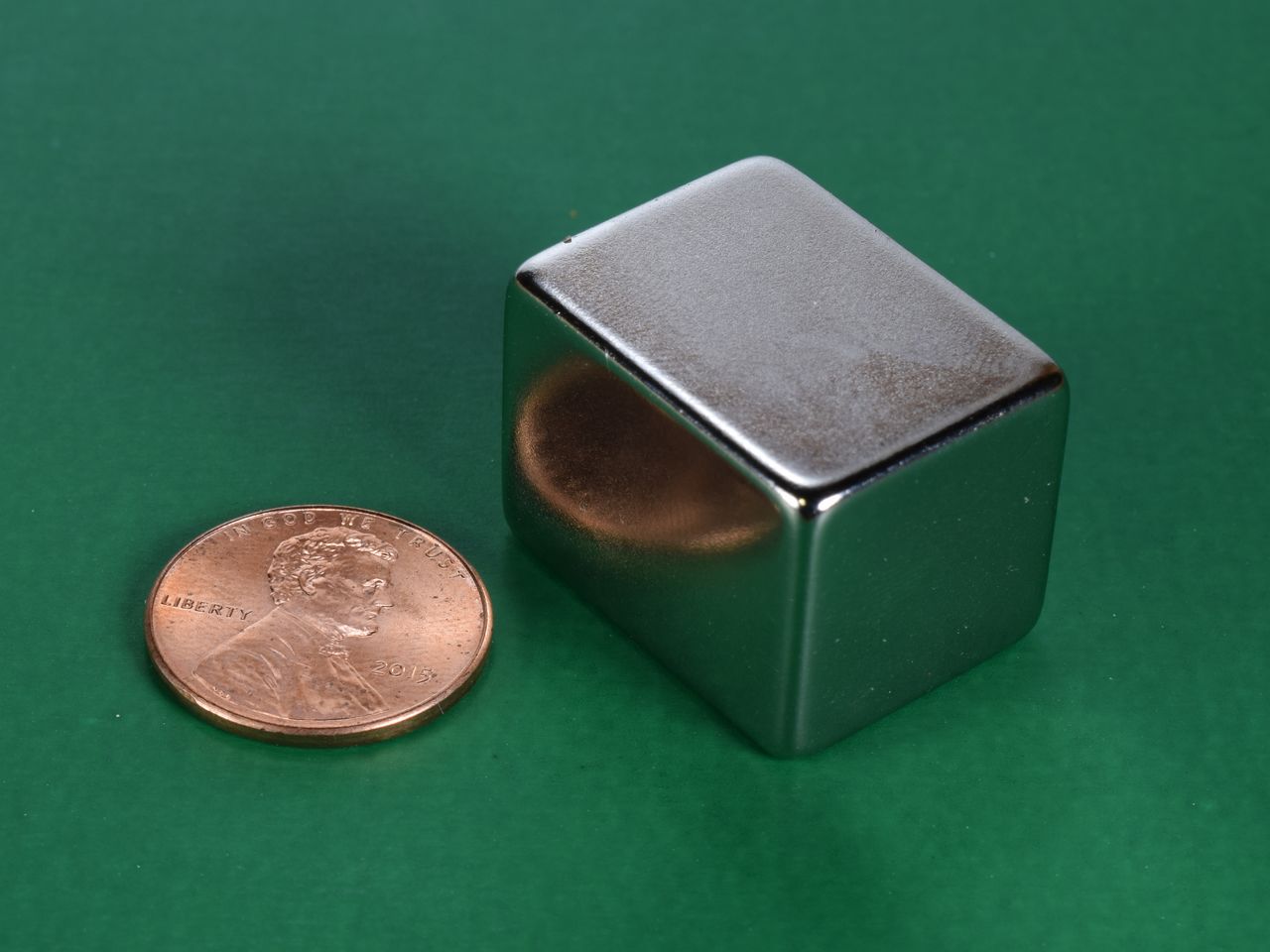

BX0CC - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 1" x 3/4" x 3/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 2.44 oz. (69.14 g)
Pull Force, Case 1: 53.06 lbs
Pull Force, Case 2: 58.38 lbs
Surface Field: 5547 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The BX0CC is a fantastically powerful block magnet! Amazingly strong and suitable for heavy duty holding applications. Always use caution when handling magnets of this size.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $15.21

Quantity:

Qty:

Price ea.	Qty
$15.21	1
$14.87	2
$14.53	3-4
$14.20	5-9
$13.86	10-24
$13.52	25-49
$13.18	50-99
$12.85	100-249
$12.51	250-499
$12.17	500-999
For pricing at higher order quantities, please email us!
