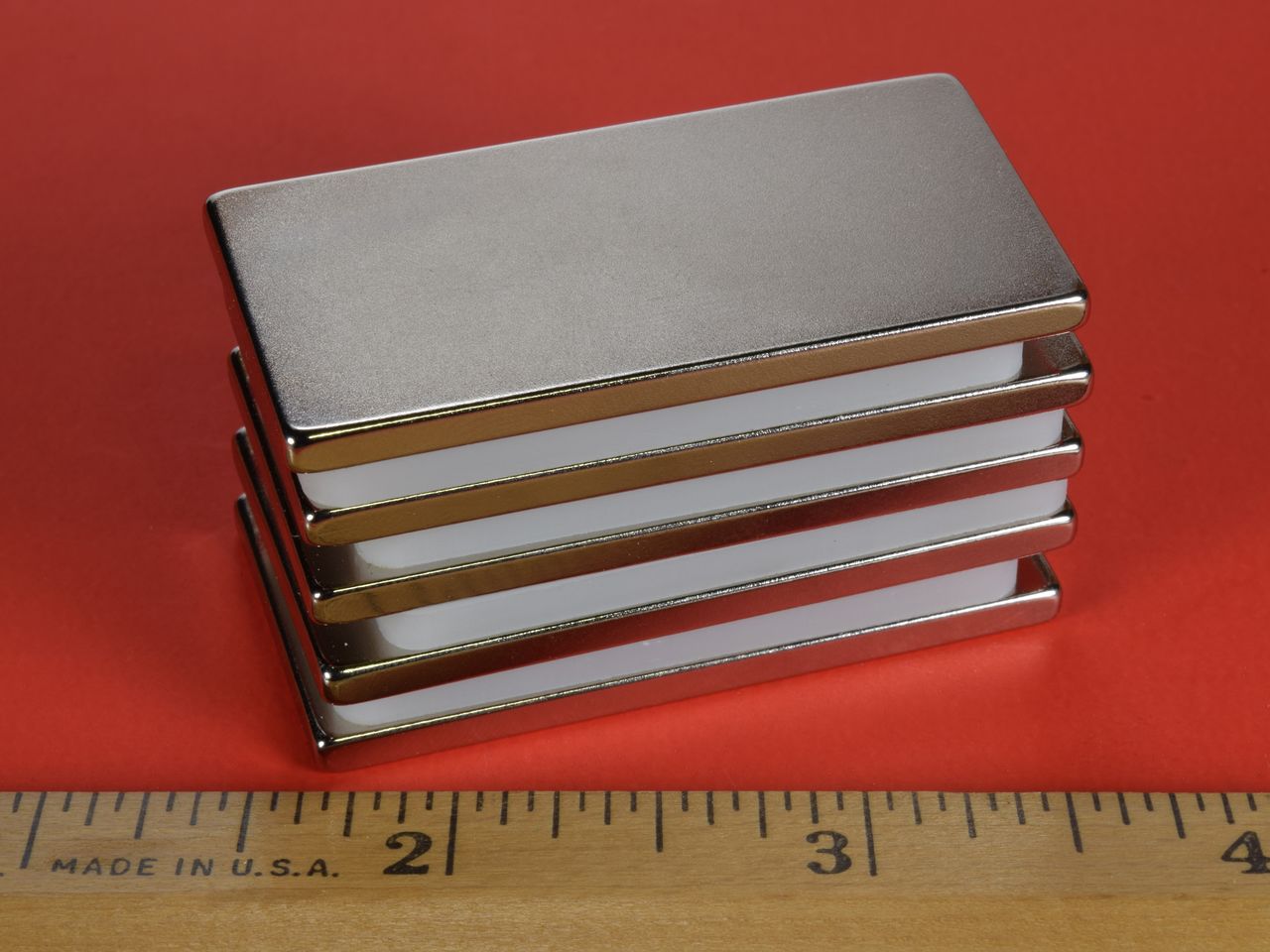

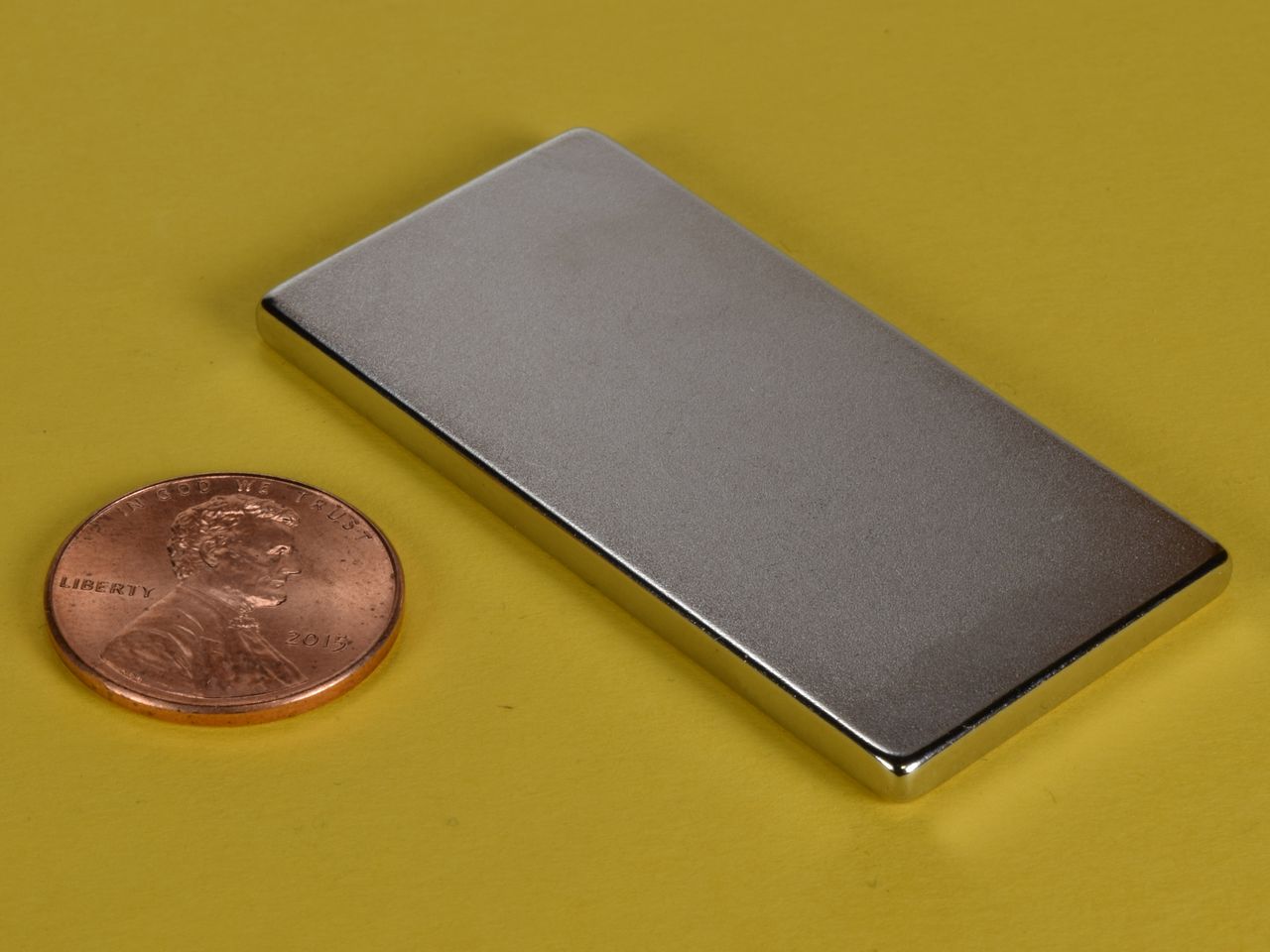

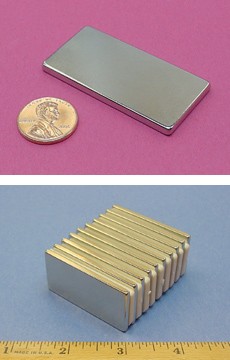

BY0X02 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 2" x 1" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 1.08 oz. (30.73 g)
Pull Force, Case 1: 21.76 lbs
Pull Force, Case 2: 132.3 lbs
Surface Field: 1152 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Large and powerful blocks in the ever-popular 1/8" thickness.

This size is also available in High Temp grade N42SH as part number BY0X02SH and in grade N52 as part number BY0X02-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $7.97

Quantity:

Qty:

Price ea.	Qty
$7.97	1
$7.79	2-4
$7.61	5-9
$7.44	10-24
$7.26	25-49
$7.08	50-99
$6.90	100-249
$6.73	250-499
$6.55	500-999
$6.37	1000-2499
For pricing at higher order quantities, please email us!
