D36

Description
Technical
Downloads

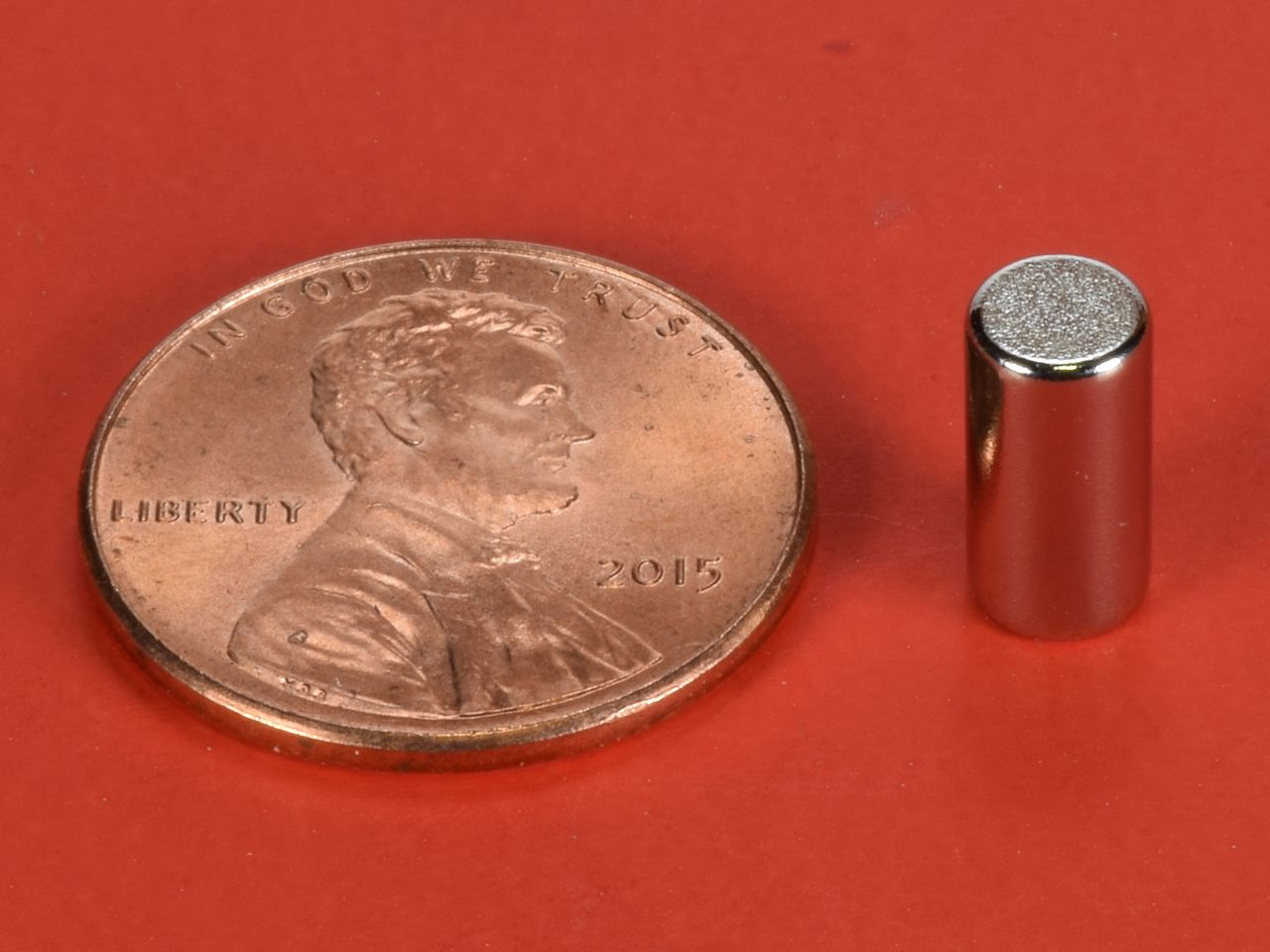

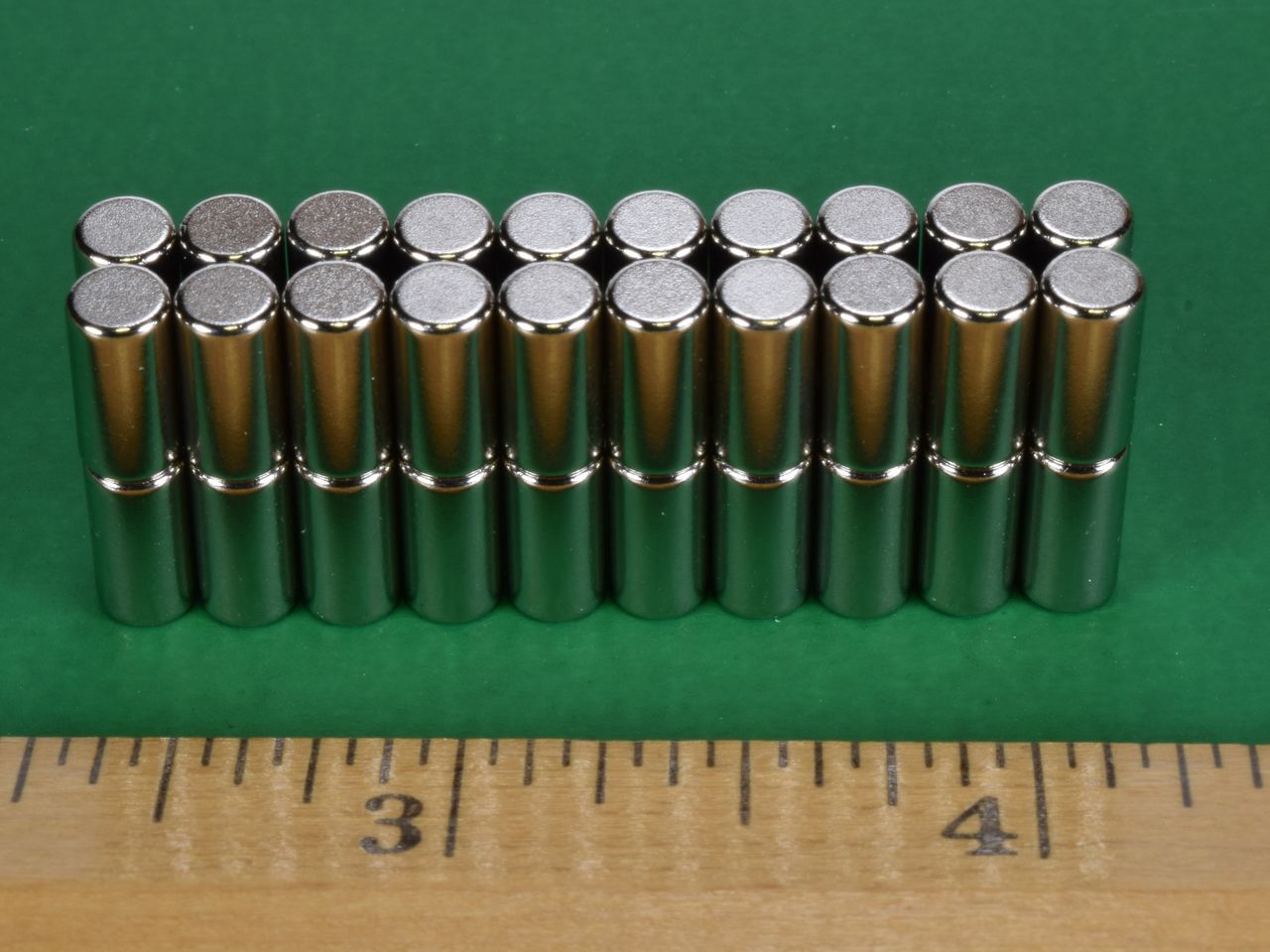

Dimensions: 3/16" dia. x 3/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0449 oz. (1.27 g)
Pull Force, Case 1: 2.00 lbs
Pull Force, Case 2: 2.12 lbs
Surface Field: 6403 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The D36 is a great size for fridge magnets. They are small and easy to handle, but strong enough to hold even the largest of art projects to the fridge. They are also an excellent choice for use on magnetic bulletin boards.

This size is also available diametrically magnetized as the D36DIA and in grade N52 as part number D36-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $0.54

Quantity:

Qty:

Price ea.	Qty
$0.54	1-49
$0.53	50-99
$0.52	100-249
$0.50	250-499
$0.49	500-999
$0.48	1000-2499
$0.47	2500-4999
$0.45	5000-9999
$0.44	10000-24999
$0.43	25000-49999
For pricing at higher order quantities, please email us!
