- Dimensions: 3/16" dia. x 1/8" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.0150 oz. (0.424 g)
- Pull Force, Case 1: 1.37 lbs
- Pull Force, Case 2: 2.01 lbs
- Surface Field: 5280 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

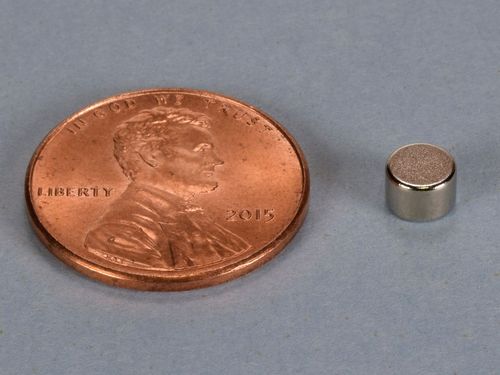

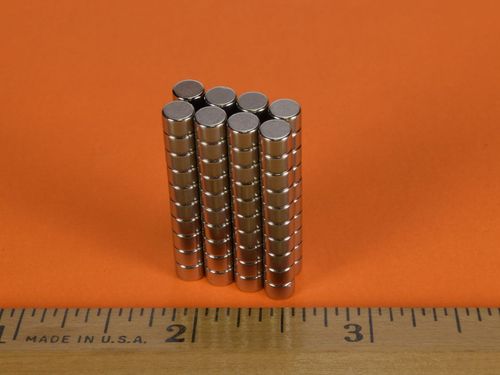

Strong little discs that can be used for a wide variety of applications. Each
one of these disc magnets has a pull force of over 1 lbs. That is over
1000 times the weight of the magnet!
This size is also available in
grade N52 as part number
D32-N52.
|
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
|
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
|
Pull Force, Case 3 vs. distance: Magnet to Magnet. |
|
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
|
Click this link for a depiction of the magnetic field. |
|
View B-H curves for this magnet. |
|
Click this link to download a PDF Specification Sheet. |
|
Click this link to download a PDF drawing of this product. |
|
Click this link to download a Certificate of Compliance for this product. |
|
Click this link to download a RoHS Statement of Compliance for this product. |
|
Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
|
Click this link to download a Conflict Minerals Reporting Template (CMRT). |
|
Click this link to download a Certificate of Origin for this product. |
|
Click this link for a REACH compliance statement. |
|
Click this link to download a .STEP file (3D model). |
|
Click this link to download an .IGS file (3D model). |
