Products › Neodymium Magnets › Disc Magnets & Cylinder Magnets › DX02 - Neodymium Disc Magnet

DX02 - Neodymium Disc Magnet

Description
Technical
Downloads
Video

Dimensions: 1" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.426 oz. (12.1 g)
Pull Force, Case 1: 12.60 lbs
Pull Force, Case 2: 57.00 lbs
Surface Field: 1601 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

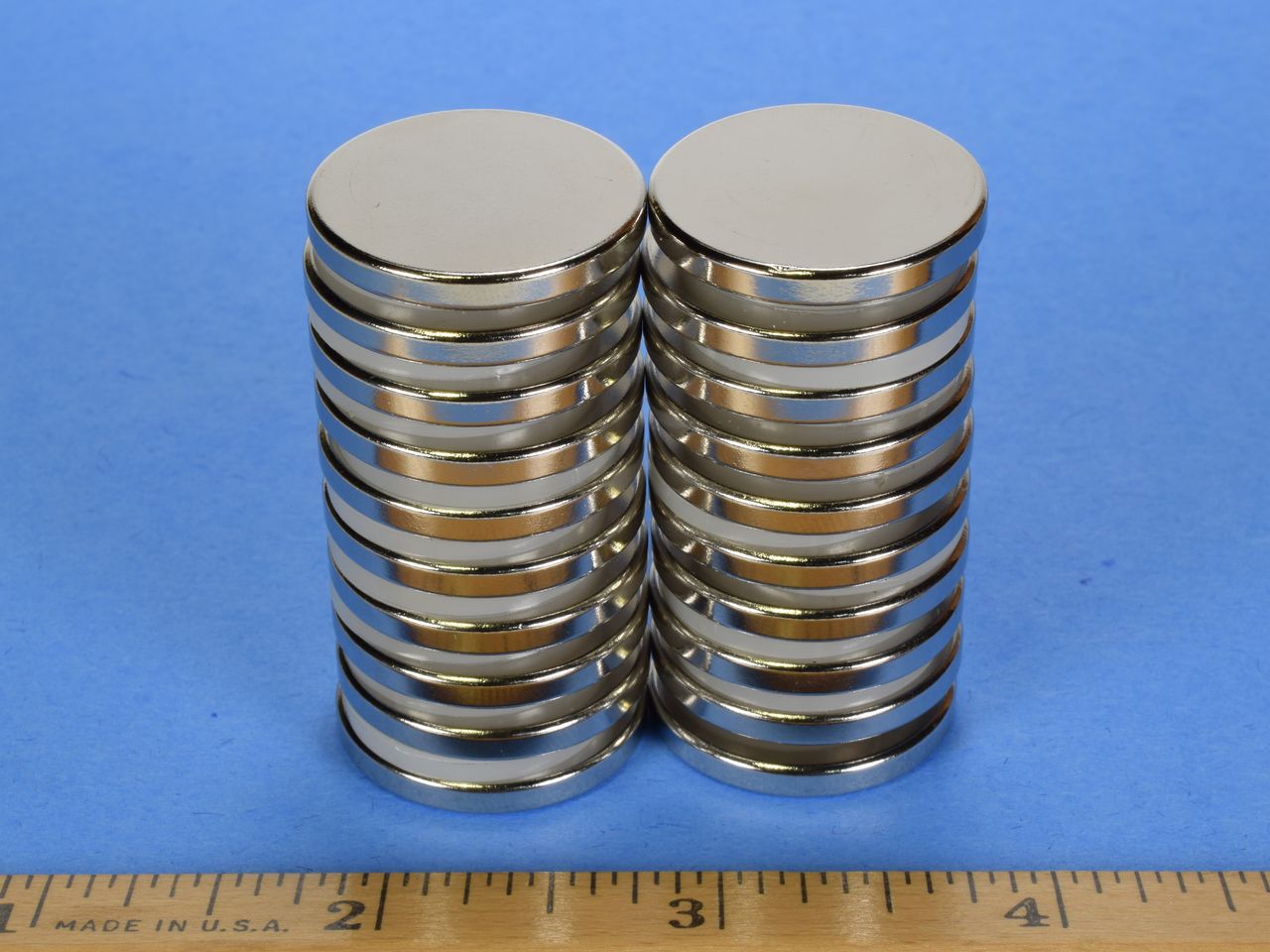

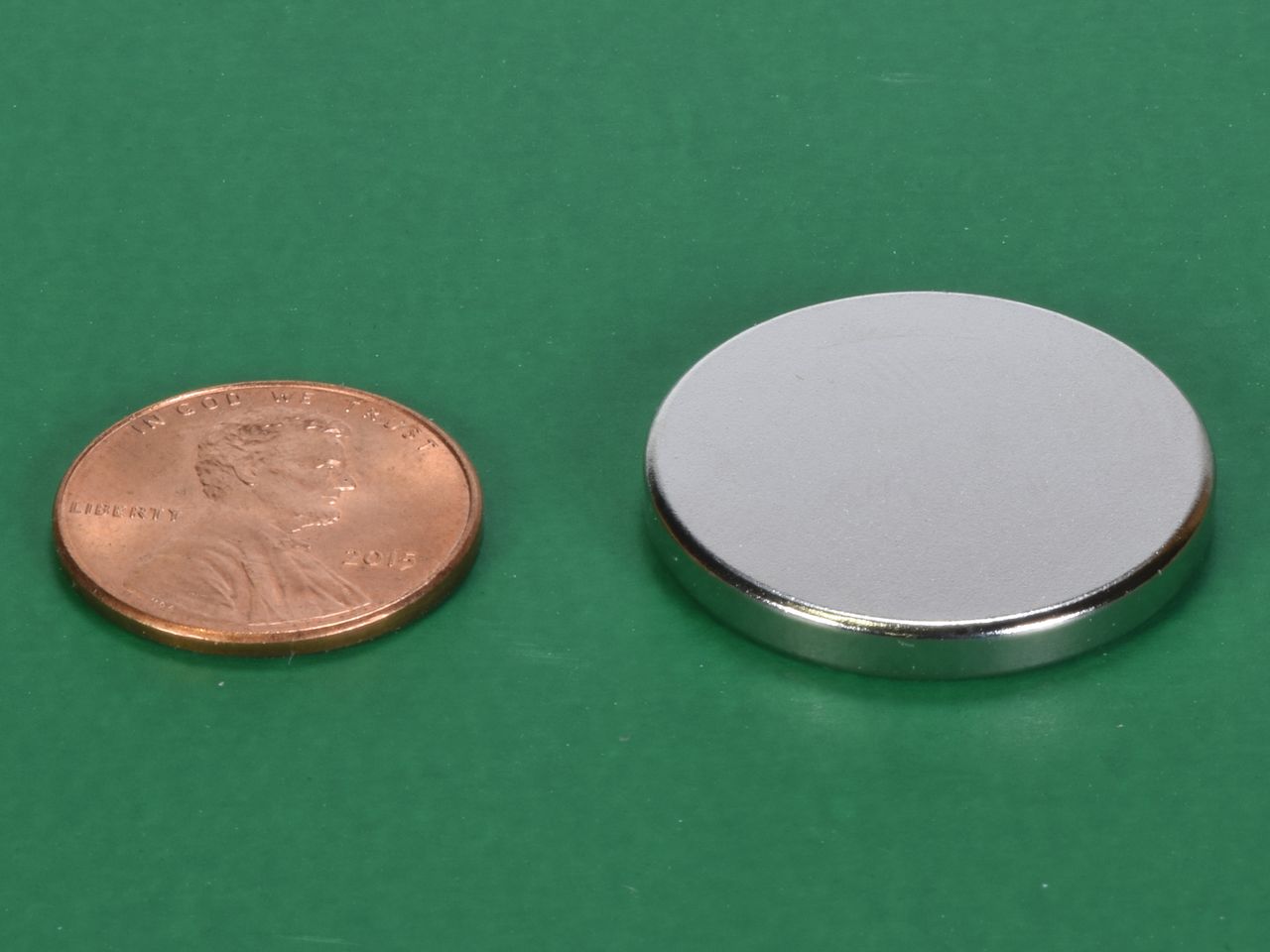

Here is a strong NdFeB disc in the very popular 1" diameter size. The nice thin shape allows the DX02 to be used inconspicuously for a wide array of applications.

This size is also available in grade N52 as part number DX02-N52 and in grade N52 with Gold plating as part number DX02G-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $3.31

Quantity:

Qty:

Price ea.	Qty
$3.31	1-4
$3.24	5-9
$3.16	10-24
$3.09	25-49
$3.02	50-99
$2.94	100-249
$2.87	250-499
$2.80	500-999
$2.72	1000-2499
$2.65	2500-4999
$2.57	5000-9999
$2.50	10000-24999
For pricing at higher order quantities, please email us!
