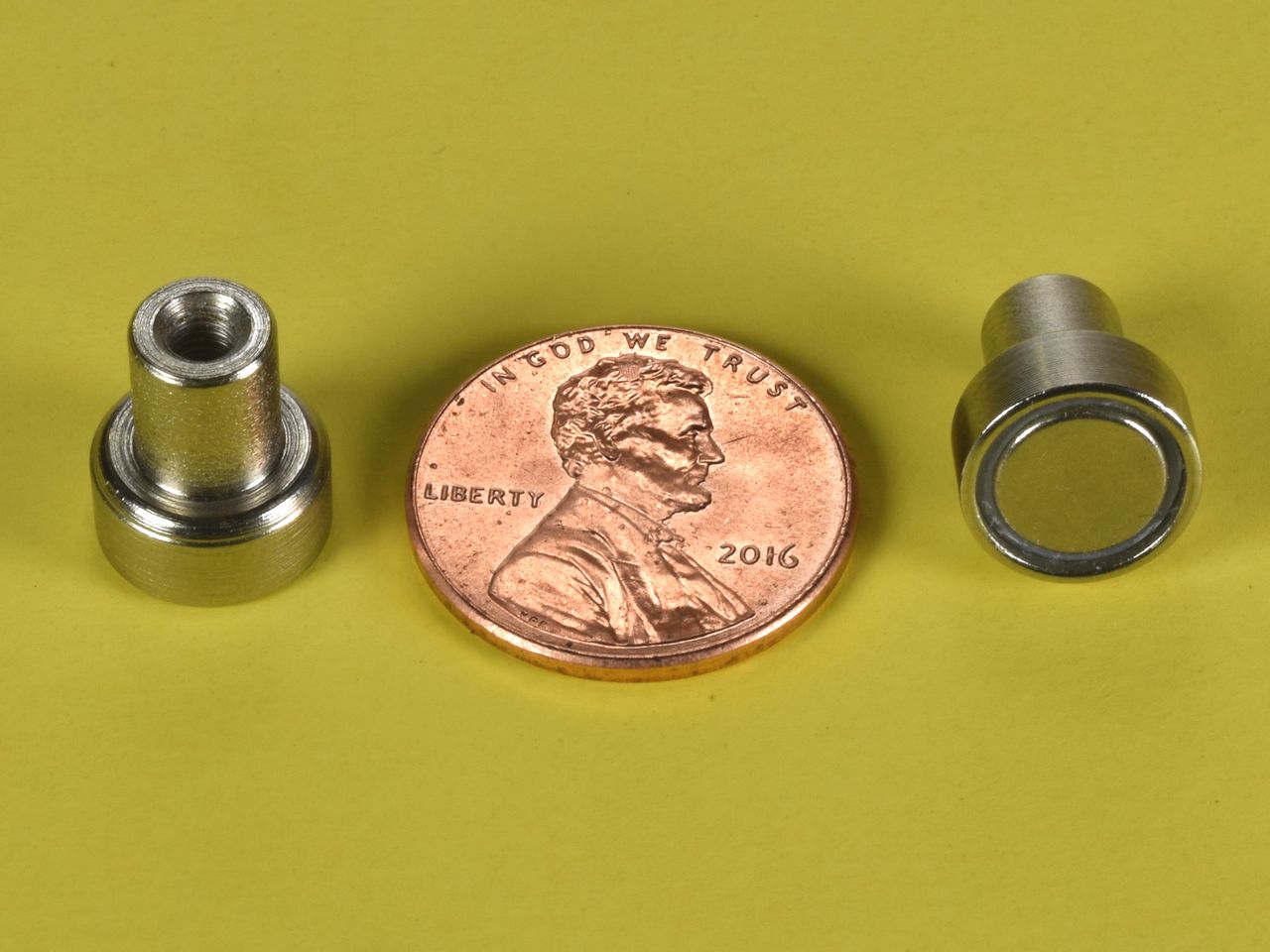

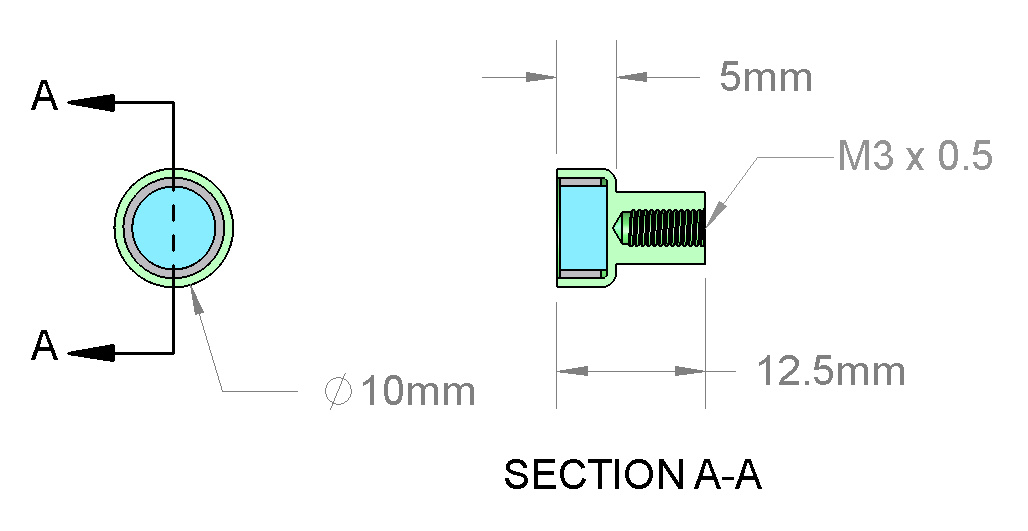

- Dimensions:
D=10mm (0.39")
d=3mm (0.12") (M3 Coarse Female threaded stud)
H=12.5mm (0.49")
h=5mm (0.20")
M=6mm (0.24") - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.14 oz. (3.86 g)
- Pull Force: 4.70 lbs
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe
