MM-D-12

MM-D-12

MM-D-12

Description
Technical
Downloads

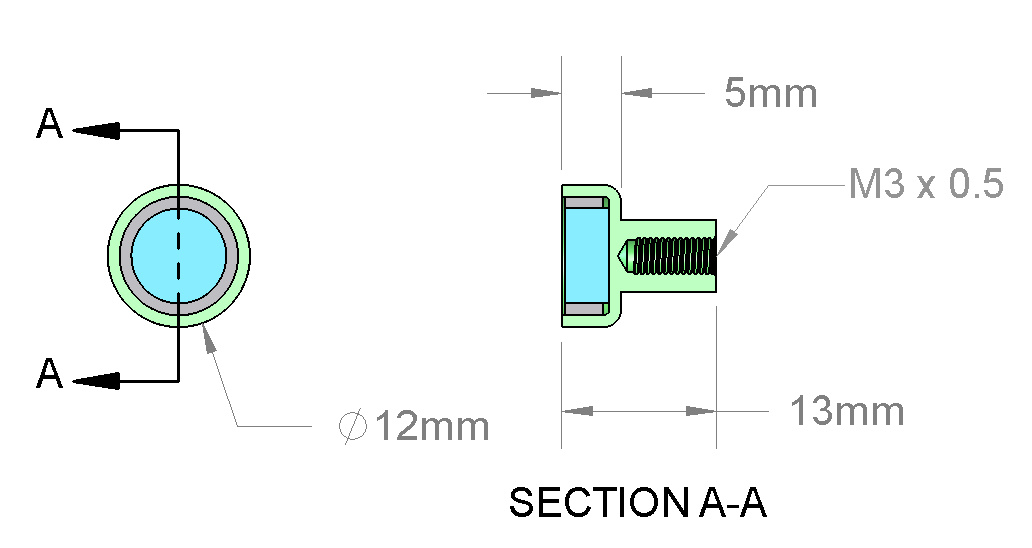

Dimensions:
    D=12mm (0.39")
    d=3mm (0.12") (M3 Coarse Female threaded stud)
    H=13mm (0.51")
    h=5mm (0.20")
    M=6mm (0.24")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.17 oz. (4.82 g)
Pull Force: 5.20 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

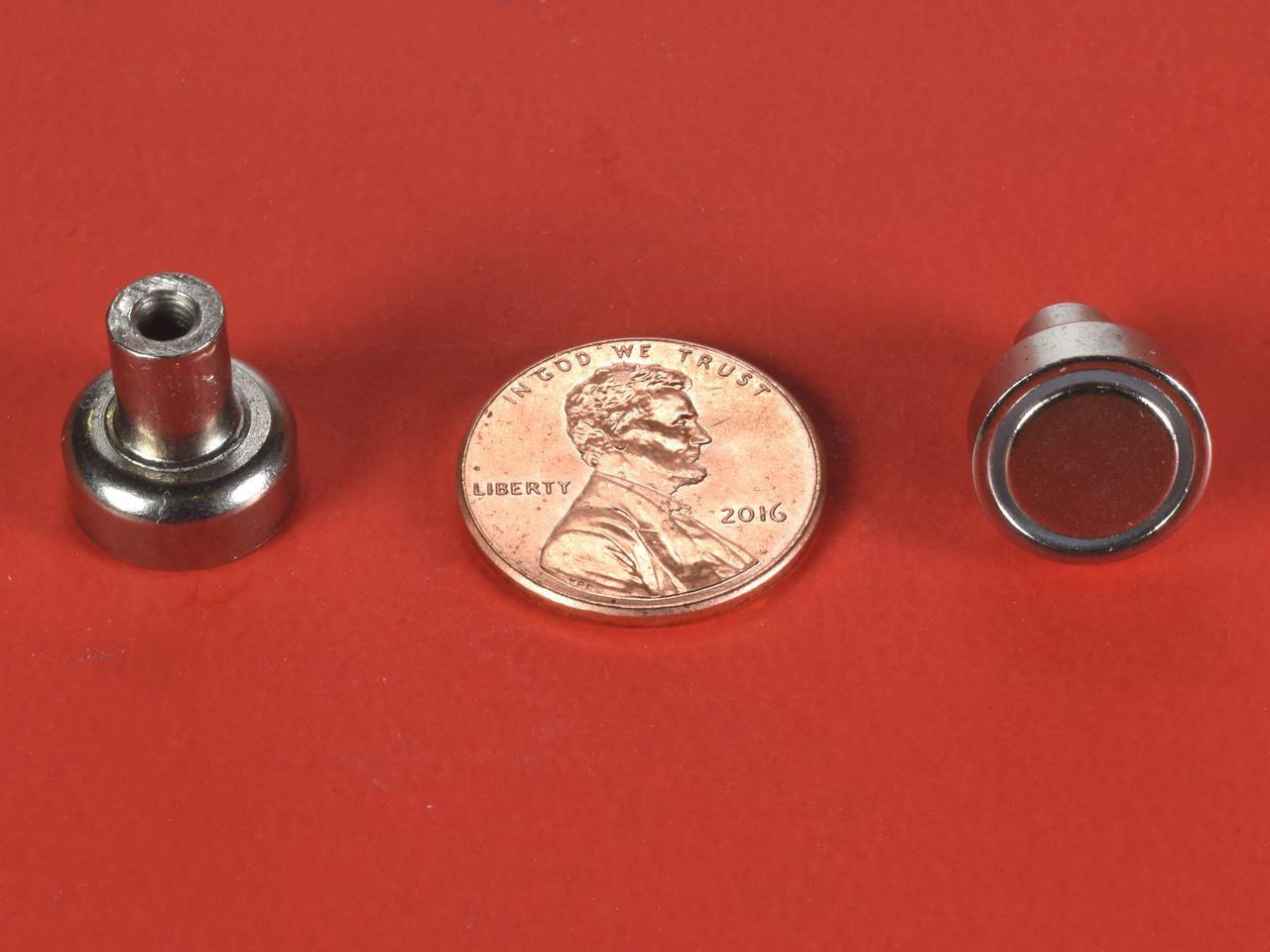

The MM-D style is a flat mounting magnet with a female threaded shaft permanently attached. If you need a magnet to attach to something threaded, this is what you need.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $1.99

Quantity:

Qty:

Price ea.	Qty
$1.99	1-9
$1.95	10-24
$1.90	25-49
$1.86	50-99
$1.81	100-249
$1.77	250-499
$1.72	500-999
$1.68	1000-2499
$1.63	2500-4999
$1.59	5000-9999
For pricing at higher order quantities, please email us!
